New Holland TN90F

The New Holland TN90F is a tractor produced by New Holland. It is equipped with a 238.5 ci 3.9 L engine. The listed engine power is Diesel (net): 88 hp / 65.6 kW; Diesel (gross): 91.1 hp / 67.9 kW. Transmission: 32 forward and 16 reverse. Operating weight: 5512 to 6283 pounds.

Overview

	1997 - 2001 TNF SeriesOrchard/Vineyard tractor TNF Series Orchard/Vineyard tractor

Production
Manufacturer	New Holland
Orchard/Vineyard tractor

New Holland TN90F Engine
Iveco 3.9L 4-cyl diesel
Fuel tank	16.1 gal 60.9 L
Engine details ...

New Holland TN90F Power
Engine (gross)	91.1 hp 67.9 kW
Engine (net)	88 hp 65.6 kW
PTO (claimed)	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
2WD Differential lock	mechanical
4WD Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Two-post mid-mount folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	2
Pump flow	12.4 gpm 46.9 lpm
	16.9 gpmOptOptional 64.0 lpm
Steering flow	7.2 gpm (Synchro) 27.3 lpm
	9.2 gpm (Dual Command) 34.8 lpm

Tractor hitch
Rear Type	II/I
Control	position control and lower-link draft sensing
Rear lift (at 24"/610mm)	4400 lbs 1995 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	cerametallic disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1957
	540E@2132
	1000@2125

Dimensions & Tires
2WD Wheelbase	87.7 inches 222 cm
4WD Wheelbase	95.6 inches 242 cm
Weight	5512 to 6283 pounds
Front tire	7.50-16
2WD Rear tire	420/70R28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	65
Battery CCA	800
Battery volts	12
Battery AH	100

References
TNF Narrow Tractors published in 1997, by New Holland
TN65F TN75F TN90F Operator's Manual (86561625) published in 1997
North American Buyer's Guide published in 1997, by New Holland

Engine

Engine Detail — 238.5 ci / 3.9 L Diesel

Manufacturer	Iveco 8045
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	238.5 ci 3.9 L
Bore/Stroke	4.094x4.528 inches 104 x 115 mm
Power (net)	88 hp 65.6 kW
Power (gross)	91.1 hp 67.9 kW
Pre-heating	thermostart
Compression	16.5:1
Rated RPM	2300
Firing order	1-3-4-2
Starter	electric
Starter volts	12
ROPS Coolant capacity	12.2 qts 11.5 L
Cab Coolant capacity	14.3 qts 13.5 L
Oil capacity	11.1 qts 10.5 L

Transmission

Transmission options
16-speed partially synchronized
32-speed two-speed power shift

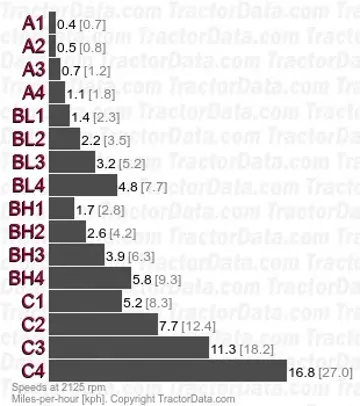

Transmission — 16 forward and reverse partially synchronized

Type	partially synchronized
Gears	16 forward and reverse
Clutch	279.4mm dry disc
Oil capacity	46.5 qts 44.0 L
Four synchronized gears (1-4) in four ranges. Tractor must be stopped (and clutch used) to shift range. Mechanical shuttle lever.
With 420/70R28 rear tires and 30 KPH transmission.

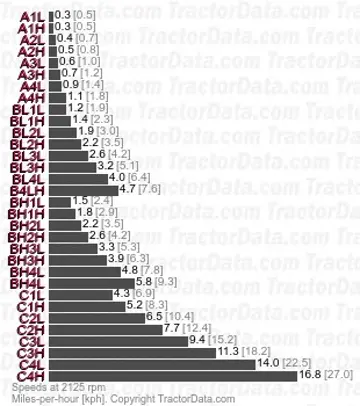

Transmission — 32 forward and 16 reverse two-speed power shift

Manufacturer	Dual Command
Type	two-speed power shift
Gears	32 forward and 16 reverse
Oil capacity	58.1 qts 55.0 L
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift and left-hand power shuttle. Push-button power shift only applies to forward speeds.
With 420/70R28 rear tires and 30 KPH transmission.

Dimensions

New Holland TN90F Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 420/70R28
4WD Standard tires (ag)	Front: 280/70R20. Rear: 420/70R28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 380/70R28
2WD Optional tires (ag)	Front: 7.50-16. Rear: 14.9-28
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9-28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 420/70R24
2WD Optional tires (ag)	Front: 6.50-16. Rear: 13.6-28
2WD Optional tires (ag)	Front: 7.00-12. Rear: 380/70R20
2WD Optional tires (ag)	Front: 7.5L-15. Rear: 380/70R24
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9-28
4WD Optional tires (ag)	Front: 280/70R16. Rear: 380/70R24
4WD Optional tires (ag)	Front: 260/70R20. Rear: 380/70R28
4WD Optional tires (ag)	Front: 280/70R20. Rear: 14.9-28
4WD Optional tires (ag)	Front: 280/70R16. Rear: 380/70R20
4WD Optional tires (ag)	Front: 260/70R18. Rear: 420/70R24
4WD Optional tires (ag)	Front: 280/70R18. Rear: 420/70R24
4WD Optional tires (ag)	Front: 300/70R20. Rear: 16.9-28
4WD Optional tires (ag)	Front: 10.5-18. Rear: 420/70R28
4WD Optional tires (ag)	Front: 7.50R18. Rear: 13.6-28

Dimensions
2WD Wheelbase	87.7 inches 222 cm
4WD Wheelbase	95.6 inches 242 cm
2WD Length	155.7 inches 395 cm
4WD Length	157.5 inches 400 cm
Width	58.7 inches 149 cm
Height (ROPS)	89 inches 226 cm
Height (cab)	90 inches 228 cm
2WD Front tread	48.1 to 63.8 inches 122 to 162 cm
Rear tread	43.7 to 57.4 inches 110 to 145 cm

New Holland TN90F Weight
2WD ROPS	5512 lbs 2500 kg
2WD Cab	5842 lbs 2649 kg
4WD ROPS	5952 lbs 2699 kg
4WD Cab	6283 lbs 2849 kg

Photos

New Holland TN90F tractor photo
