New Holland TS115

The New Holland TS115 is a tractor produced by New Holland. It is equipped with a 456 ci 7.5 L engine. The listed engine power is Diesel (net): 106 hp / 79.0 kW. Transmission: ElectroShift - creeper. Operating weight: 10449 lbs 4739 kg.

Engine Power

Diesel (net): 106 hp / 79.0 kW

Fuel & Capacities

52.5 gal 198.7 L

Transmission

ElectroShift - creeper

Operating Weight

10449 lbs 4739 kg

Overview

	2001 - 2003 TS Series

Production
Manufacturer	New Holland
Built in Basildon, England

New Holland TS115 Engine
New Holland 7.5L 6-cyl diesel
Fuel tank	52.5 gal 198.7 L
Engine details ...

New Holland TS115 Power
Engine (net)	106 hp 79.0 kW
PTO (claimed)	95 hp 70.8 kW

Mechanical
Four-wheel drive
Power steering
Cab standard with air-conditioning.

Hydraulics
Type	open
	closed center OptOptional
Pressure	2500 psi 172.4 bar
	2700 psi (open center) 186.2 bar
Valves	2 to 4
Pump flow	9.3 gpm 35.2 lpm
	17.4 gpm (optional pump) 65.9 lpm
	20 gpm (closed center) 75.7 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	4,200 lbs 1905 kg
	6,210 lbs (assist ram) 2816 kg
	8,240 lbs (two assist rams) 3737 kg
	8,598 lbs (two rams, Elec draft control) 3900 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	103.3 inches 262 cm
Weight	10449 lbs 4739 kg
Front tire	13.6-24
Rear tire	16.9-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	100
Charging volts	12
Battery volts	12

Engine

Engine Detail — 456 ci / 7.5 L Diesel

Manufacturer	New Holland
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	456 ci 7.5 L
Bore/Stroke	4.40x5.00 inches 112 x 127 mm
Emissions	Stage I
Power (net)	106 hp 79.0 kW
Compression	17.5:1
Rated RPM	2070
Firing order	1-5-3-6-2-4
Coolant capacity	22.8 qts 21.6 L
Intake valve clearance	0.014-0.018 inches (cold) 0.356 mm
Exhaust valve clearance	0.017-0.021 inches (cold) 0.432 mm
Oil capacity	22 qts 20.8 L

Transmission

Transmission options
12-speed
24-speed
16-speed

Transmission — Synchro Command

Transmission	Synchro Command
Gears	12 forward and reverse
Oil capacity	60 qts 56.8 L
Four gears provided in three ranges, plus a shuttle lever. Tractor may be shifted on the move, using the clutch, between gears, high or medium range, and forward-reverse shuttle. Tractor must be stopped to enter low range.
16.9-38 rear tires.

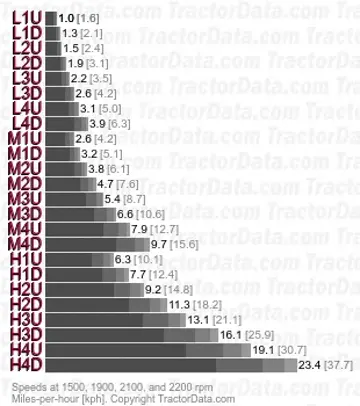

Transmission — Dual Command

Transmission	Dual Command
Gears	24 forward and reverse
Oil capacity	60 qts 56.8 L
Same as Synchro Command, with an additional underspeed powershift button on the gear lever. The direct/underspeed ranges may be shifted on the move without the clutch. A 'dump button' on the shuttle lever can be used for clutchless shifting between forward and reverse.
16.9-38 rear tires.

Transmission — ElectroShift

Transmission	ElectroShift
Gears	16 forward and reverse
Oil capacity	64 qts 60.6 L

Transmission — ElectroShift - creeper

Transmission	ElectroShift - creeper
Gears	24 forward and reverse
Additional range of creeper gears can be selected using the clutch with the range in low. Creeper engaged by a toggle switch.

Dimensions

New Holland TS115 Tires
Standard tires (ag)	Front: 13.6-24. Rear: 16.9-34

Dimensions
Wheelbase	103.3 inches 262 cm
Length	172 inches 436 cm
Width	79.2 inches*Minimum 201 cm
Height (cab)	106.8 inches 271 cm
Height (exhaust)	111.3 inches 282 cm
Weight	10449 lbs 4739 kg
Clearance (front axle)	17.7 inches 44 cm
Clearance (drawbar)	15 inches 38 cm

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland TS115 based on its 106 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland TS115.

Estimated Continuous Field Runtime: 9.5 hrs

Approximately 9.5 hours of continuous field operation at ~75% rated power on a full tank (52.5 gal / 198.7 L).

Estimated 75% Load Fuel Burn~5.5 gal/hr (20.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
