New Holland LS35 9863217

The New Holland LS35 9863217 is a tractor produced by New Holland Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW. Transmission: Hydro-Gear 330-300. Operating weight: 510 lbs 231 kg.

Engine Power

Gasoline (gross): 15 hp / 11.2 kW

Fuel & Capacities

3.9 gal 14.8 L

Transmission

Hydro-Gear 330-300

Operating Weight

510 lbs 231 kg

Overview

	1996 - 2003 LS SeriesGarden tractorToro built LS Series Garden tractor Toro built

Production
Distributor	New Holland
Manufacturer	Toro
Garden tractor
Original price was $3,980 in 2003

Variants
265	similar Wheel Horse model

New Holland LS35 Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank	3.9 gal 14.8 L
Engine details ...

New Holland LS35 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station with adjustable seat.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	49.5 inches 125 cm
Weight	510 lbs 231 kg
Front tire	16x6.50-8
Rear tire	23x9.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	200
Battery volts	12

References

Lawn and Garden Products published in 2001, by New Holland
LS Yard Tractor published in 1996, by New Holland
LS Yard Tractor published in 1998, by New Holland
North American Buyer's Guide published in 1997, by New Holland

Service Manual LS Yard Tractors (40002550) published in 1995
Service Manual LS Series Yard Tractors (40002551) published in 1996
Service Manual LS Series Yard Tractors (87014217) published in 2002

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer	Kohler CV15
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	426 cc 26 ci
Bore/Stroke	3.543x2.64 inches 90 x 67 mm
Power (gross)	15 hp 11.2 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Tuff Torq K61

Transmission	Tuff Torq K61
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L
Foot-pedal controlled hydrostatic transmission with optional cruise control.

Transmission — Hydro-Gear 330-300

Transmission	Hydro-Gear 330-300
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.8 qts 3.6 L
Oil type	SAE 20W-50
Oil change	sealed unit, owner service is not recommended
The Hydro-Gear was used on the LS35 beginning with the 2000 model year.

Dimensions

New Holland LS35 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x9.50-12

Dimensions
Wheelbase	49.5 inches 125 cm
Length	69 inches 175 cm
Width	35.25 inches 89 cm
Height (steering wheel)	42.4 inches 107 cm
Weight	510 lbs 231 kg
Ground clearance	7.25 inches 18 cm
Front axle	Cast-iron

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade
Attachments advertised for the New Holland LS Series yard tractors included a 36-inch rear tiller, grass catcher for the 38-inch deck, and power-flow bagger for the 42 and inch deck.

Photos

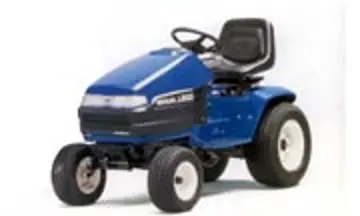

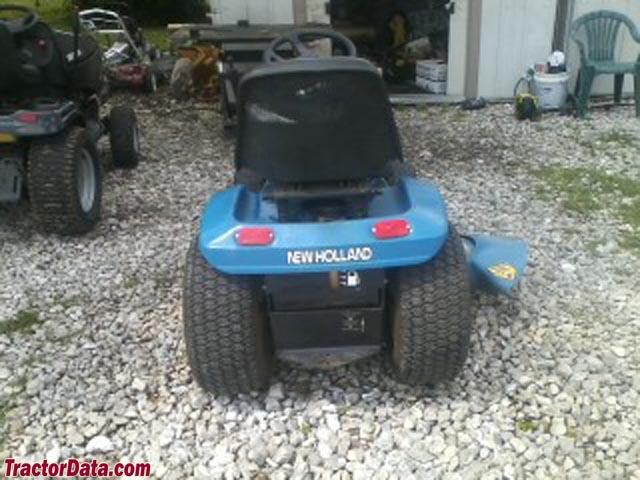

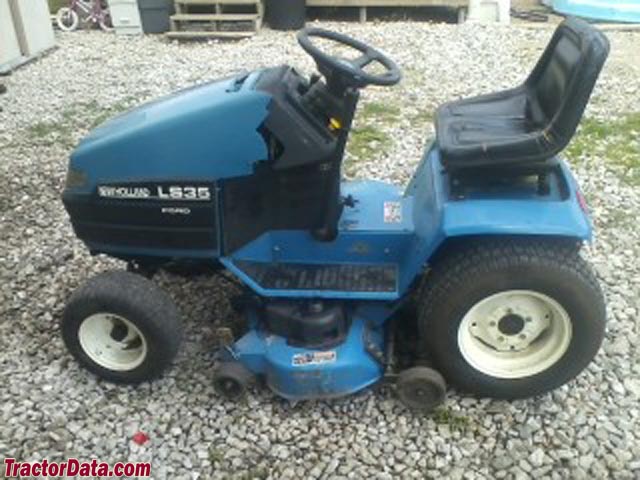

New Holland LS35 9863217

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland Lawn Tractors New Holland LS35 9863217 based on its 15 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland Lawn Tractors New Holland LS35 9863217.

Estimated Continuous Field Runtime: 5 hrs

Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (3.9 gal / 14.8 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
