New Holland MY16
The New Holland MY16 is a tractor produced by New Holland Lawn Tractors. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hydro-Gear. Operating weight: 530 lbs 240 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
3.9 gal
14.8 L
Transmission
Hydro-Gear
Operating Weight
530 lbs
240 kg
Overview
 | 2004 - 2007
MY SeriesGarden tractorToro built
MY Series
Garden tractor
Toro built |
|---|
Production | |
|---|---|
Distributor | New Holland |
Manufacturer | Toro |
Garden tractor | |
The New Holland MY16 is similar to the Toro 416XT. | |
New Holland MY16 Engine | |
|---|---|
16HP Kohler 1-cyl gasoline | |
Fuel tank | 3.9 gal
14.8 L |
Engine details ...  | |
New Holland MY16 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical band brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 530 lbs
240 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 260 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Equipment published in 2004, by New Holland |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler Command |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
New Holland MY16 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Length | 71 inches
180 cm |
Width | 35.5 inches
90 cm |
Height (steering wheel) | 42.2 inches
107 cm |
Weight | 530 lbs
240 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Advertised MY-series attachments included a 36-inch tiller, 600-pound lawn roller, lawn sweeper, aerator, and towed dump carts. |
Photos

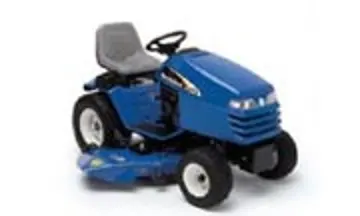

New Holland MY16 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for New Holland Lawn Tractors New Holland MY16 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland Lawn Tractors New Holland MY16.
Estimated Continuous Field Runtime: 4.7 hrs
Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (3.9 gal / 14.8 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
New Holland Lawn Tractors New Holland MY16 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for New Holland Lawn Tractors New Holland MY16.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare New Holland MY16 against same-era industry alternatives in the same horsepower class.
Current Model
New Holland Lawn Tractors
New Holland MY16
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
