Pasquali 409

The Pasquali 409 is a tractor produced by Pasquali. It is equipped with a 48.2 ci 0.8 L engine. The listed engine power is Diesel (listed): 17.4 hp / 13.0 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1323 lbs 600 kg.

Overview

Production
Manufacturer	Pasquali
Built in Italy

Pasquali 409 Engine
0.8L 2-cyl diesel
Engine details ...

Pasquali 409 Transmission
9-speed gear
Transmission details ...

Pasquali 409 Power
Engine	17.4 hp 13.0 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical disc brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	480/720

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	1323 lbs 600 kg
Front tire	4.00-12
Rear tire	7.50-16
Full dimensions and tires ...

Engine

Engine Detail — 48.2 ci / 0.8 L Diesel

Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	48.2 ci 0.8 L
Power	17.4 hp 13.0 kW
Starter	electric
Starter volts	12

Transmission

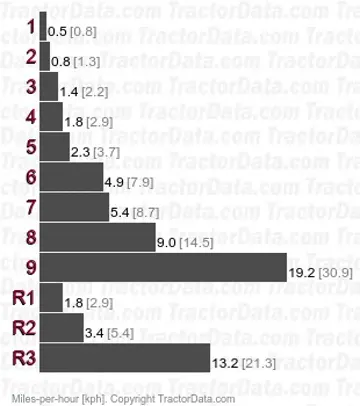

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	dry disc

Dimensions

Pasquali 409 Tires
Standard tires (ag)	Front: 4.00-12. Rear: 7.50-16

Dimensions
Wheelbase	50 inches 127 cm
Length	92.1 inches 233 cm
Width	40.6 inches 103 cm
Height (steering wheel)	43.4 inches 110 cm
Weight	1323 lbs 600 kg
Ground clearance	9.1 inches 23 cm
Front tread	36.2 inches 91 cm
Rear tread	31.9 inches 81 cm
