Pasquali 945

The Pasquali 945 is a tractor produced by Pasquali. It is equipped with a 43.1 ci 0.7 L engine. The listed engine power is Diesel (net): 18.5 hp / 13.8 kW; Diesel (gross): 20 hp / 14.9 kW. Transmission: 6 forward and 3 reverse. Drive type: 4x4 4WD. Operating weight: 1345 lbs 610 kg.

Overview

Production
Manufacturer	Pasquali
Built in Italy

Pasquali 945 Engine
Lombardini 0.7L 1-cyl diesel
Engine details ...

Pasquali 945 Transmission
6-speed gear
Transmission details ...

Pasquali 945 Power
Engine (gross)	20 hp 14.9 kW
Engine (net)	18.5 hp 13.8 kW

Mechanical
Drive	4x4 4WD
Open operator station.

Dimensions & Tires
Weight	1345 lbs 610 kg
Front tire	6.00x16
Rear tire	6.00x16
Full dimensions and tires ...

References
Tractors from 18 to 30HP published by Pasquali

Engine

Engine Detail — 43.1 ci / 0.7 L Diesel

Manufacturer	Lombardini
Fuel Type	Diesel
Configuration	1-cylinder, air-cooled
Displacement	43.1 ci 0.7 L
Bore/Stroke	3.94x3.54 inches 100 x 90 mm
Power (net)	18.5 hp 13.8 kW
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 3 reverse gear

Type	gear
Gears	6 forward and 3 reverse

Dimensions

Pasquali 945 Tires
Standard tires (ag)	Front: 6.00x16. Rear: 6.00x16
Optional tires (ag)	Front: 6.50x16. Rear: 6.50x16

Dimensions
Length	87.4 inches 221 cm
Width	31.5 inches 80 cm
Height (steering wheel)	41.7 inches 105 cm
Weight	1345 lbs 610 kg
Front tread	31.5 to 40.9 inches 80 to 103 cm
Rear tread	31.5 to 40.9 inches 80 to 103 cm

Photos

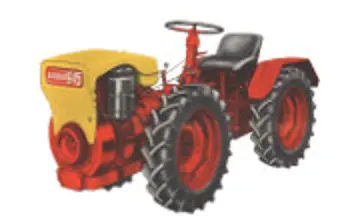

Pasquali 945 tractor photo
