Pasquali 454

The Pasquali 454 is a tractor produced by Pasquali. It is equipped with a 66.2 ci 1.1 L engine. The listed engine power is Diesel (listed): 22.1 hp / 16.5 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1433 lbs 650 kg.

Overview

Production
Manufacturer	Pasquali
Built in Italy

Pasquali 454 Engine
1.1L 2-cyl diesel
Engine details ...

Pasquali 454 Transmission
9-speed gear
Transmission details ...

Pasquali 454 Power
Engine	22.1 hp 16.5 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical disc brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	480/720

Dimensions & Tires
Wheelbase	52.8 inches 134 cm
Weight	1433 lbs 650 kg
Front tire	4.00-12
Rear tire	9.50-20
Full dimensions and tires ...

Engine

Engine Detail — 66.2 ci / 1.1 L Diesel

Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	66.2 ci 1.1 L
Power	22.1 hp 16.5 kW
Starter	electric
Starter volts	12

Transmission

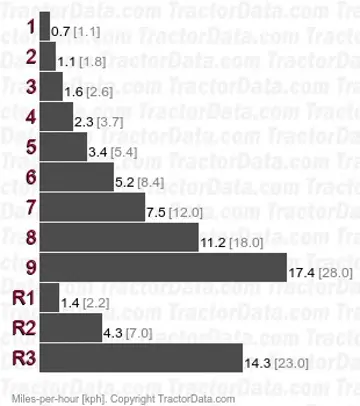

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	dry disc

Dimensions

Pasquali 454 Tires
Standard tires (ag)	Front: 4.00-12. Rear: 9.50-20

Dimensions
Wheelbase	52.8 inches 134 cm
Length	91.7 inches 232 cm
Width	39.4 inches 100 cm
Height (steering wheel)	48 inches 121 cm
Weight	1433 lbs 650 kg
Ground clearance	13 inches 33 cm
Front tread	34.7 inches 88 cm
Rear tread	32.3 inches 82 cm
