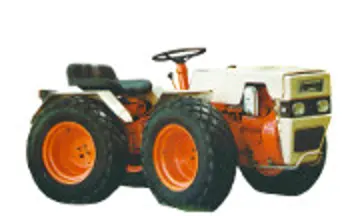

Pasquali 986

The Pasquali 986 is a tractor produced by Pasquali. It is equipped with a 43.14 ci 0.7 L engine. The listed engine power is Diesel (net): 18 hp / 13.4 kW; Diesel (gross): 21 hp / 15.7 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1609 lbs 729 kg.

Overview

	1970 - 1981 Utility tractor

Production
Manufacturer	Pasquali
Utility tractor
Built in Italy

Pasquali 986 Engine
Lombardini 0.7L 1-cyl diesel
Engine details ...

Pasquali 986 Transmission
9-speed gear
Transmission details ...

Pasquali 986 Power
Engine (gross)	21 hp 15.7 kW
Engine (net)	18 hp 13.4 kW
PTO (claimed)	18 hp 13.4 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	mechanical
	power OptOptional
Mechanical drum brakes
Open operator station.

Hydraulics
Type	open center
Pump flow	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type	I
Control	position control

Power Take-off (PTO)
Rear PTO Type	540/750/ground

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	1609 lbs 729 kg
Front tire	6.50x16
Rear tire	6.50x16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	92

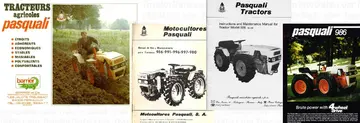

References
Tracteurs agricoles published by Pasquali
Manual de Uso y Maintenimiento
Instructions and Maintenance Manual for Tractor Model 986
986 published by Pasquali

Engine

Engine Detail — 43.14 ci / 0.7 L Diesel

Manufacturer	Lombardini LDA-100
Fuel Type	Diesel
Configuration	1-cylinder, air-cooled
Displacement	43.14 ci 0.7 L
Bore/Stroke	3.94x3.54 inches 100 x 90 mm
Power (net)	18 hp 13.4 kW
Power (gross)	21 hp 15.7 kW
Compression	17:1
Rated RPM	3000
Torque	31.7 lb-ft 43.0 Nm
Torque RPM	1800
Starter	electric
Starter volts	12

Transmission

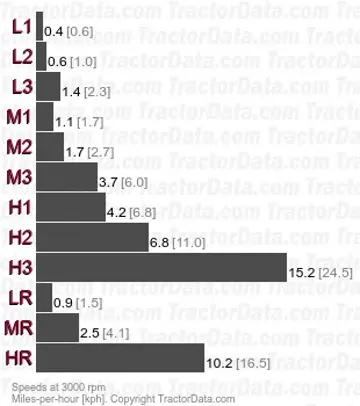

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	mechanical dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Pasquali 986 Tires
Ag front	6.50x16
Ag rear	6.50x16
Ag front	6.00-16
Ag rear	6.00-16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	92.5 inches 234 cm
Height (steering wheel)	42 inches 106 cm
Weight	1609 lbs 729 kg
Ground clearance	8.7 inches 22 cm
Front tread	25.2 to 33.1 inches 64 to 84 cm
Rear tread	25.2 to 33.1 inches 64 to 84 cm

Photos

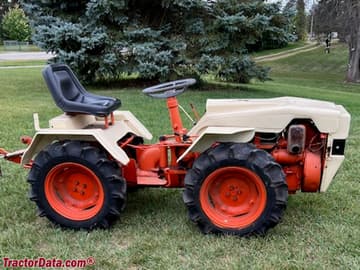

Pasquali 986
