Pasquali 993
The Pasquali 993 is a tractor produced by Pasquali. It is equipped with a 66.1 ci 1.1 L engine. The listed engine power is Diesel (listed): 30 hp / 22.4 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1786 lbs 810 kg.
Engine Power
Diesel (listed): 30 hp / 22.4 kW
Fuel & Capacities
Diesel
Transmission
9 forward and 3 reverse
Operating Weight
1786 lbs
810 kg
Overview
 | 1981 - ????
Utility tractor |
|---|---|
1981 - ???? | |
Utility tractor | |
1981 - ???? | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Pasquali |
Utility tractor | |
Built in Italy | |
Pasquali 993 Engine | |
|---|---|
Ruggerini 1.1L 2-cyl diesel | |
Engine details ...  |
Pasquali 993 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Pasquali 993 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical front and rear |
Steering | mechanical |
power OptOptional | |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/720 |
Dimensions & Tires | |
|---|---|
Wheelbase | 46.5 inches
118 cm |
Weight | 1786 lbs
810 kg |
Front tire | 7.50x16 |
Rear tire | 7.50x16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 92 |

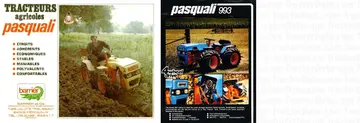

References | |
|---|---|
 | |
Tracteurs agricoles published by Pasquali | |
993 published by Pasquali |
Engine
| 1981 - ????
Utility tractor |
|---|---|
1981 - ???? | |
Utility tractor | |
1981 - ???? | |
|---|---|
Utility tractor |
Engine Detail — 66.1 ci / 1.1 L Diesel
Manufacturer | Ruggerini |
Fuel Type | Diesel |
Configuration | 2-cylinder, air-cooled |
Displacement | 66.1 ci
1.1 L |
Bore/Stroke | 3.54x3.35 inches
90 x 85 mm |
Power | 30 hp
22.4 kW |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Transmission
| 1981 - ????
Utility tractor |
|---|---|
1981 - ???? | |
Utility tractor | |
1981 - ???? | |
|---|---|
Utility tractor |

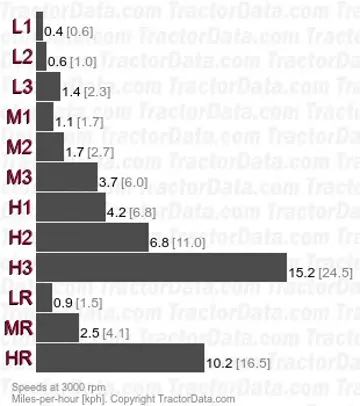

Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Clutch | 203.2mm dry disc |
Three gears, plus reverse, in three ranges. | |
 | |
Dimensions
| 1981 - ????
Utility tractor |
|---|---|
1981 - ???? | |
Utility tractor | |
1981 - ???? | |
|---|---|
Utility tractor |
Pasquali 993 Tires | |
|---|---|
Ag front | 7.50x16 |
Ag rear | 7.50x16 |
Dimensions | |
|---|---|
Wheelbase | 46.5 inches
118 cm |
Length | 96.5 inches
245 cm |
Height (steering wheel) | 43.5 inches
110 cm |
Weight | 1786 lbs
810 kg |
Ground clearance | 12 inches
30 cm |
Front tread | 33 to 58 inches
83 to 147 cm |
Rear tread | 33 to 58 inches
83 to 147 cm |
Photos

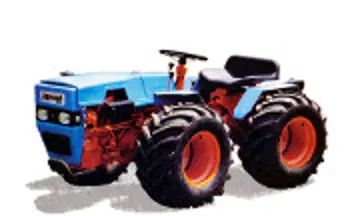

Pasquali 993 tractor photo
Pasquali 993 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Pasquali 993.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
