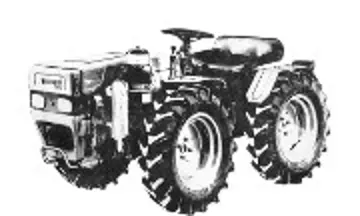

Pasquali 980

The Pasquali 980 is a tractor produced by Pasquali. It is equipped with a 100.6 ci 1.6 L engine. The listed engine power is Diesel (net): 37.6 hp / 28.0 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2161 lbs 980 kg.

Overview

	1970 - 1981 Utility tractor

Production
Manufacturer	Pasquali
Utility tractor
Built in Italy

Pasquali 980 Engine
Lombardini 1.6L 2-cyl diesel
Engine details ...

Pasquali 980 Transmission
9-speed gear
Transmission details ...

Pasquali 980 Power
Engine (net)	37.6 hp 28.0 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	mechanical
	power OptOptional
Mechanical drum brakes
Open operator station.

Hydraulics
Type	open center
Pump flow	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/750/ground

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	2161 lbs 980 kg
Front tire	7.50-18
Rear tire	7.50-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	92

References

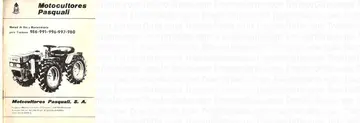

Manual de Uso y Maintenimiento

Engine

Engine Detail — 100.6 ci / 1.6 L Diesel

Manufacturer	Lombardini LDA-832
Fuel Type	Diesel
Configuration	2-cylinder, air-cooled
Displacement	100.6 ci 1.6 L
Bore/Stroke	3.94x4.13 inches 100 x 105 mm
Power (net)	37.6 hp 28.0 kW
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

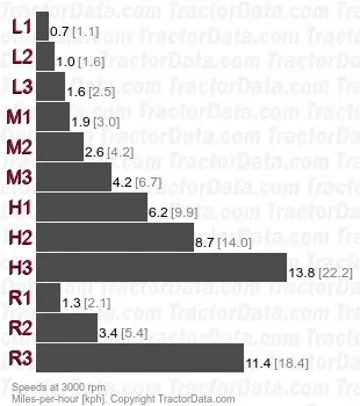

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	mechanical dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Pasquali 980 Tires
Ag front	7.50-18
Ag rear	7.50-18
Ag front	7.50-16
Ag rear	7.50-16

Dimensions
Wheelbase	46.5 inches 118 cm
Length	96.5 inches 245 cm
Height (steering wheel)	42.1 inches 106 cm
Weight	2161 lbs 980 kg
Ground clearance	9.8 inches 24 cm
Front tread	26.4 to 40.6 inches 67 to 103 cm
Rear tread	26.4 to 40.6 inches 67 to 103 cm

Photos

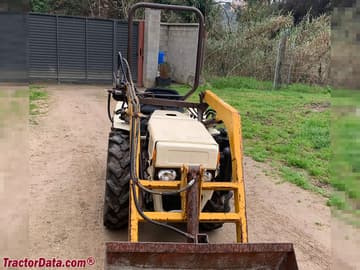

Pasquali 980 with SORT loader.

Pasquali 980 with SORT loader.

Pasquali 980 with SORT loader.
