Power King 1616

The Power King 1616 is a tractor produced by Power King Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Borg-Warner T92. Operating weight: 958 lbs (3-speed) 434 kg.

Overview

	1977 - 1983 1600 SeriesGarden tractor
1977 - 1983
1600 Series
Garden tractor

Production
Manufacturer	Power King (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA

Power King 1616 Engine
16HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...

Mechanical
Two-wheel drive
Final drives	bull gear
Manual steering
Mechanical drum brakes
Open operator station. Vinyl weather cab optional.

Capacity
Fuel	3 gal 11.4 L
Hydraulic system	5 gal 18.9 L

Hydraulics
Type	open center
Capacity	5 gal 18.9 L
Pressure	1000 psi 69.0 bar
Pump flow	1.7 gpm 6.4 lpm

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electro-magnetic
Rear PTO Type	2000
Front PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	54.375 inches 138 cm
Weight	958 to 975 pounds
Front tire	4.00-12
Rear tire	8.00-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

References
Power King - One Tough Tractor published in 1980, by EPCO

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer	Briggs & Stratton 326437
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	531 cc 32.4 ci
Bore/Stroke	3.5625x3.25 inches 90 x 83 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Torque	25.8 lb-ft 35.0 Nm
Torque RPM	2700
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission options
3-speed gear
4-speed gear
9-speed gear

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm dry disc
Oil capacity	0.25 qts 0.2 L
Oil type	80/90 Gear Lube

	80/90 Gear Lube

Transmission — 4 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	4 forward and 1 reverse
Clutch	152.4mm dry disc
Oil capacity	0.1875 qts 0.2 L

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	9 forward and 3 reverse
Clutch	152.4mm dry disc
Optional creeper for 3-speed transmission. Adds a second, identical, three-speed transmission inline with the original.

Dimensions

Power King 1616 Tires
Ag front	4.00-12
Ag rear	8.00-16
Lawn/turf front	4.00-12
Lawn/turf rear	8.00-16

Dimensions
Wheelbase	54.375 inches 138 cm
Length	93 inches 236 cm
Width	44.125 inches (min) 112 cm
Height (steering wheel)	52 inches 132 cm
Height (hood)	40.5 inches 102 cm
Weight	958 lbs (3-speed) 434 kg
	975 lbs (4-speed) 442 kg
Ground clearance	16 inches (frame) 40 cm
Front axle	0.75 inch diameter 19 mm
Rear axle	1.5 inch diameter 38 mm
Front tread	35 inches 88 cm
Rear tread	35/40.5 inches 88/102 cm

Attachments

Attachment overview
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

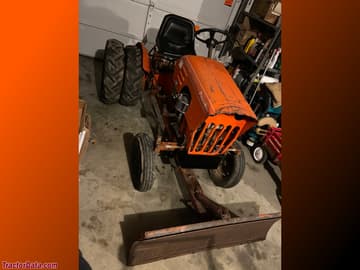

Power King 1616
