Power King 2418
The Power King 2418 is a tractor produced by Power King Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: 4 forward and 1 reverse. Operating weight: 1100 lbs 498 kg.
Engine Power
Gasoline (listed): 18 hp / 13.4 kW
Fuel & Capacities
8 gal
30.3 L
Transmission
4 forward and 1 reverse
Operating Weight
1100 lbs
498 kg
Overview
 | 1988 - 1993
2400 SeriesGarden tractor
2400 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Power King |
Garden tractor | |
Built in Beaver Dam, Wisconsin, USA | |
Power King 2418 Engine | |
|---|---|
18HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 8 gal
30.3 L |
Engine details ...  | |
Power King 2418 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 2000 |
Front PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 57 inches
144 cm |
Weight | 1100 lbs
498 kg |
Front tire | 8.0x10 |
Rear tire | 8.3x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 45 |
References | |
|---|---|
 | |
Power King published in 1987, by Engineering Products Co. | |
Power King published in 1990, by Support Services | |
Power King published in 1992, by Support Services |
Engine
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler Magnum M18 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.125x2.75 inches
79 x 70 mm |
Power | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Transmission
Transmission — 4 forward and 1 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical dry disc |
 | |
Dimensions
Power King 2418 Tires | |
|---|---|
Ag front | 4.0x12 |
Ag rear | 8.3x24 |
Lawn/turf front | 8.0x10 |
Lawn/turf rear | 8.3x24 |
Dimensions | |
|---|---|
Wheelbase | 57 inches
144 cm |
Length | 87 inches
220 cm |
Width | 44 inches
111 cm |
Height (steering wheel) | 54 inches
137 cm |
Weight | 1100 lbs
498 kg |
Ground clearance | 18 inches
45 cm |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

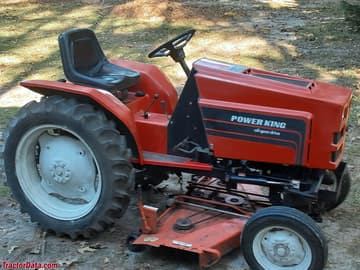

Power King 2418
Recommended Implements & Sizing Guide
Engineering recommendations for Power King Lawn Tractors Power King 2418 based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Power King Lawn Tractors Power King 2418.
Estimated Continuous Field Runtime: 8.5 hrs
Approximately 8.5 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Power King Lawn Tractors Power King 2418 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Power King Lawn Tractors Power King 2418.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
Direct Competitor Comparison
Compare Power King 2418 against same-era industry alternatives in the same horsepower class.
Current Model
Power King Lawn Tractors
Power King 2418
Engine Power:Gasoline (listed): 18 hp / 13.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester Type A 15HP
Engine Power:16.7
Production Years:1908 - 1911
