Renault 103-54
The Renault 103-54 is a tractor produced by Renault. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 93 hp 69.4 kW. Transmission: 24 forward and 8 reverse. Operating weight: 10051 to 10371 pounds.
Engine Power
93 hp
69.4 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
24 forward and 8 reverse
Operating Weight
10051 to 10371 pounds
Renault 103-54 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1997
Row-Crop tractor |
|---|---|
1991 - 1997 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Renault |
Row-Crop tractor | |
Variants | |
|---|---|
103-52 | 2WD |
103-54 | 4WD |
Renault 103-54 Engine | |
|---|---|
MWM 4.2L 4-cyl diesel | |
Fuel tank | 34.3 gal
129.8 L |
Engine details ...  | |
Renault 103-54 Power | |
|---|---|
Engine (gross) | 102 hp
76.1 kW |
Engine (net) | 93 hp
69.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Valves | 2 to 4 |
Pump flow | 11 gpm
41.6 lpm |
Total flow | 19.5 gpm
73.8 lpm |
Steering flow | 7.2 gpm
27.3 lpm |
Tractor hitch | |
|---|---|
Control | lower-link draft sensing |
Rear lift | 8206 lbs
3722 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 644@2350 |
1105@2350 | |
Front PTO | independent OptOptional |
Front PTO Type | 540 (1.375) |
Engine RPM | 1036@2350 |
Dimensions & Tires | |
|---|---|
Wheelbase | 97.6 inches
247 cm |
Weight | 10051 to 10371 pounds |
Front tire | 14.9-28 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
103-52/54 TX-TS-TA-TE published in 1991, by Renault |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | MWM TD226-4 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power (net) | 93 hp
69.4 kW |
Power (gross) | 102 hp
76.1 kW |
Air cleaner | dry |
Rated RPM | 2350 |
Torque | 233.1 lb-ft
316.1 Nm |
Torque RPM | 1500 |
Starter type | electric |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |

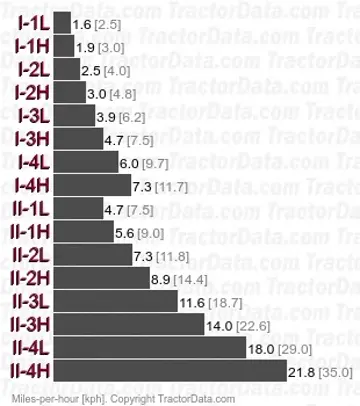

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears in two ranges with two-speed splitter | |
With 16.9-38 rear tires. | |
 | |
Transmission — 24 forward and 8 reverse
Gears | 24 forward and 8 reverse |
Dimensions
Renault 103-54 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-28. Rear: 16.9-38 |
Optional tires (ag) | Front: 16.9-38 12.4-28. Rear: 13.6-38 |
Front: 13.6-28. Rear: 16.9-38 | |
Front: 13.6-28. Rear: 18.4-38 | |
Dimensions | |
|---|---|
Wheelbase | 97.6 inches
247 cm |
Length | 169.3 inches
430 cm |
Width | 79.9 inches*Minimum width
202 cm |
Height (cab) | 114.2 inches
290 cm |
ROPS Weight | 10051 lbs
4559 kg |
Cab Weight | 10371 lbs
4704 kg |
Clearance (front axle) | 19.7 inches
50 cm |
Clearance (rear axle) | 16.5 inches
41 cm |
Photos

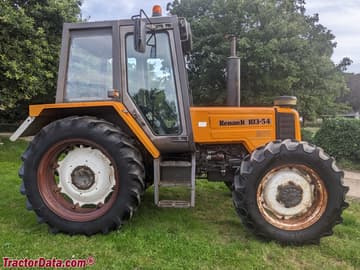

Renault 103-54
Renault 103-54
