Renault Ares 616

The Renault Ares 616 is a tractor produced by Renault. It is equipped with a 414.2 ci 6.8 L engine. The listed engine power is Diesel (listed): 114 hp / 85.0 kW. Transmission: 32 forward and reverse. Operating weight: 12,061 lbs 5470 kg.

Overview

	2002 - 2003 Ares Series

Production
Manufacturer	Renault

Renault Ares 616 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	48.9 gal 185.1 L
	55.5 gal 210.1 L
Engine details ...

Renault Ares 616 Transmission
32-speed
Transmission details ...

Renault Ares 616 Power
Engine	114 hp 85.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
cab with air conditioning

Hydraulics
Total flow	15.9 gpm 60.2 lpm
	29.1 gpm 110.1 lpm

Tractor hitch
Rear lift	18,676 lbs 8471 kg

Power Take-off (PTO)
Rear PTO Type	540/750/ 1000/1250

Dimensions & Tires
Wheelbase	108.3 inches 275 cm
Weight	12,061 lbs 5470 kg
Front tire	14.9R28
Rear tire	18.4R38
Full dimensions and tires ...

Engine

Engine Detail — 414.2 ci / 6.8 L Diesel

Manufacturer	John Deere 6068 DRT
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	414.2 ci 6.8 L
Bore/Stroke	4.193x5.00 inches 107 x 127 mm
Power	114 hp 85.0 kW
Rated RPM	2000
Torque	340.0 lb-ft 461.0 Nm
Torque RPM	1300

Transmission

Transmission — 32 forward and reverse

Gears

32 forward and reverse

Dimensions

Renault Ares 616 Tires
Ag front	14.9R28
Ag rear	18.4R38

Dimensions
Wheelbase	108.3 inches 275 cm
Length	167.7 inches 425 cm
Height	113.8 inches 289 cm
Weight	12,061 lbs 5470 kg

Photos

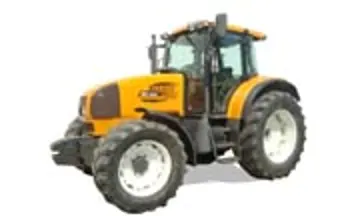

Renault Ares 616 tractor photo
