Sabre 2354HV

The Sabre 2354HV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Tuff Torq K66C. Operating weight: 600 lbs 272 kg.

Overview

	2000 - 2002 Garden SeriesGarden tractor
2000 - 2002
Garden Series
Garden tractor

Production
Manufacturer	Sabre (a part of John Deere)
Garden tractor
Factories	Horicon, Wisconsin, USA
	Greeneville, Tennessee, USA
Original price was $4,099 in 2002

Sabre 2354HV Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Sabre 2354HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48.5 inches 123 cm
Weight	600 lbs 272 kg
Front tire	16x6.50-8
Rear tire	23x12.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere
Sabre Tractors published in 2001, by John Deere

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler CV23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	673 cc 41.1 ci
Power	23 hp 17.2 kW
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Tuff Torq K66C

Transmission	Tuff Torq K66C
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Sabre 2354HV Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x12.00-12

Dimensions
Wheelbase	48.5 inches 123 cm
Length	72.3 inches 183 cm
Height	45.6 inches 115 cm
Weight	600 lbs 272 kg

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

54" Mower deck
Type	mid-mount Sabre
	3-blade with manual lift
Cutting width	54 inches 137 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

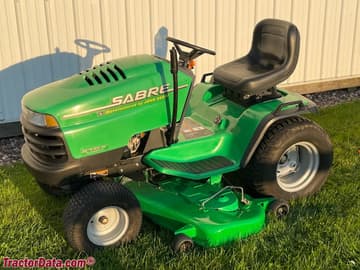

Sabre 2354HV
