Sabre 1948HV

The Sabre 1948HV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The rated power output is 19 hp 14.2 kW. Transmission: Tuff Torq K62. Operating weight: 570 lbs 258 kg.

Overview

	2000 - 2002 Yard SeriesGarden tractor
2000 - 2002
Yard Series
Garden tractor

Production
Manufacturer	Sabre (a part of John Deere)
Garden tractor
Factories	Horicon, Wisconsin, USA
	Greeneville, Tennessee, USA
Original price was $3,529 in 1999

Variants
1948GV	gear
1948HV	hydrostatic

Sabre 1948HV Engine
19HP Kohler 622cc 2-cyl gasoline
Fuel tank	3.0 gal 11.4 L
Engine details ...

Sabre 1948HV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48.5 inches 123 cm
Weight	570 lbs 258 kg
Front tire	16x6.50-8
Rear tire	23x9.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere
Sabre Tractors published in 2001, by John Deere

Engine

Engine Detail — 622 cc / 38 ci Gasoline

Manufacturer	Kohler CV20S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	622 cc 38 ci
Power (gross)	19 hp 14.2 kW
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Tuff Torq K62

Transmission	Tuff Torq K62
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Sabre 1948HV Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x9.50-12

Dimensions
Wheelbase	48.5 inches 123 cm
Length	72 inches 182 cm
Height	44.9 inches 114 cm
Weight	570 lbs 258 kg

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

48" Mower deck
Type	mid-mount Sabre
	3-blade with manual lift
Cutting width	48 inches 121 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

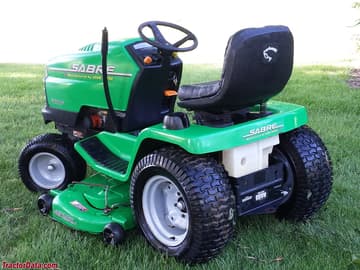

Sabre 1948HV

Sabre 1948HV
