SAME Centurion 75

The SAME Centurion 75 is a tractor produced by Same. It is equipped with a 253.48 ci 4.2 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 12 forward and reverse. Drive type: 4x2 2WD. Operating weight: 7,188 lbs (2WD) 3260 kg.

Engine Power

Diesel (listed): 75 hp / 55.9 kW

Drive & Traction

4x2 2WD

Fuel & Capacities

31.7 gal 120.0 L

Transmission

12 forward and reverse

Operating Weight

7,188 lbs (2WD) 3260 kg

Overview

	1978 - 1985

Production
Manufacturer	SAME

SAME Centurion 75 Engine
SAME 4.2L 4-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

SAME Centurion 75 Power
Engine	75 hp 55.9 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)

Hydraulics
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear lift	8158 lbs 3700 kg

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	91.34 inches 232 cm
Weight	7188 to 7871 pounds
Front tire	7.50-18
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 253.48 ci / 4.2 L Diesel

Manufacturer	SAME
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	253.48 ci 4.2 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	75 hp 55.9 kW
Rated RPM	2300

Transmission

Transmission options
8-speed
12-speed

Transmission — 8 forward and 4 reverse

Gears

8 forward and 4 reverse

Transmission — 12 forward and reverse

Gears

12 forward and reverse

Dimensions

SAME Centurion 75 Tires
Ag front	7.50-18
	14.9-24 (4WD)
Ag rear	16.9-34

Dimensions
Wheelbase	91.34 inches 232 cm
Length	157.09 inches 399 cm
Height	106.69 inches 270 cm
Weight	7,188 lbs (2WD) 3260 kg
	7,871 lbs (4WD) 3570 kg

Photos

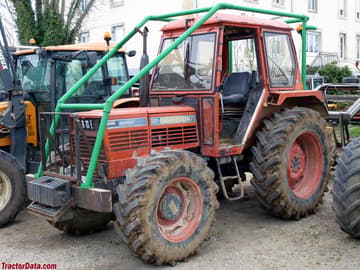

SAME Centurion 75

Recommended Implements & Sizing Guide

Engineering recommendations for Same Centurion 75 based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Centurion 75.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
