SAME Diamond 230
The SAME Diamond 230 is a tractor produced by Same. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (gross): 239 hp / 178.2 kW. Transmission: 40 forward and reverse. Operating weight: 18541 lbs 8410 kg.
Engine Power
Diesel (gross): 239 hp / 178.2 kW
Fuel & Capacities
95.1 gal
360.0 L
Transmission
40 forward and reverse
Operating Weight
18541 lbs
8410 kg
Overview
 | 2006 - 2012
Diamond SeriesRow-Crop tractor
Diamond Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | SAME |
Row-Crop tractor | |
SAME Diamond 230 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 95.1 gal
360.0 L |
145.3 galOptOptional
550.0 L | |
Engine details ...  | |
SAME Diamond 230 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
SAME Diamond 230 Power | |
|---|---|
Engine (gross) | 239 hp
178.2 kW |
Engine (max) | 247 hp
184.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | pneumatic |
hydraulic | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | load sensing |
Valves | 4 |
Pump flow | 31.7 gpm
120.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 23149 lbs
10500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540E/1000 |
Engine RPM | 540E@1630 |
Front PTO | independent |
Clutch | electro-hydraulic wet disc |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Weight | 18541 lbs
8410 kg |
Front tire | 600/65R38 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Diamond 230 - 270 published in 2010, by SAME |
Engine
Engine Detail — 436.1 ci / 7.1 L Diesel
Manufacturer | Deutz TCD2013 |
Configuration | turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled |
Displacement | 436.1 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Rated Power (gross) | 239 hp
178.2 kW |
Maximum Power (gross) | 247 hp
184.2 kW |
Air cleaner | dry |
Rated RPM | 2300 |
Torque | 708.8 lb-ft
961.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 40 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 40 forward and reverse |
Clutch | hydraulic wet disc |
Four power shift gears four creeper ranges and six field ranges with power shuttle. | |
With 710/70R42 rear tires. | |
 | |
Dimensions
SAME Diamond 230 Tires | |
|---|---|
Ag front | 600/65R38 |
Ag rear | 710/70R42 |
Dimensions | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Length | 196.9 inches
500 cm |
Width | 108.3 inches
275 cm |
Height (cab) | 128.2 inches
325 cm |
Weight | 18541 lbs
8410 kg |
Ground clearance | 23.6 inches
59 cm |
Front tread | 70.9 to 78.7 inches
180 to 199 cm |
Rear tread | 70.9 to 78.7 inches
180 to 199 cm |
Photos

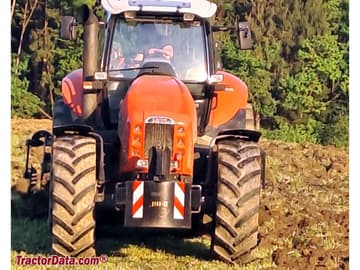

SAME Diamond 230 tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for Same Diamond 230 based on its 239 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Diamond 230.
Estimated Continuous Field Runtime: 7.7 hrs
Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (95.1 gal / 360 L).
Estimated 75% Load Fuel Burn~12.4 gal/hr (47 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Diamond 230 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Diamond 230.
Converted Equivalents:
Horsepower (HP)239 hp
Kilowatts (kW)178.2 kW
Metric Horsepower (PS / CV)242.3 PS
Direct Competitor Comparison
Compare SAME Diamond 230 against same-era industry alternatives in the same horsepower class.
Current Model
Same
SAME Diamond 230
Engine Power:Diesel (gross): 239 hp / 178.2 kW
★ Baseline Reference
