SAME Diamond 270
The SAME Diamond 270 is a tractor produced by Same. It is equipped with a 436.1 ci 7.1 L engine. The rated power output is 266 hp 198.4 kW. Transmission: 40 forward and reverse. Operating weight: 19951 lbs 9049 kg.
Engine Power
266 hp
198.4 kW
Fuel & Capacities
145.3 gal
550.0 L
Transmission
40 forward and reverse
Operating Weight
19951 lbs
9049 kg
Same Diamond 270 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2012
Diamond SeriesRow-Crop tractor |
|---|---|
2006 - 2012 | |
Diamond Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | SAME |
Row-Crop tractor | |
SAME Diamond 270 Engine | |
|---|---|
Deutz 7.1L 6-cyl diesel | |
Fuel tank | 145.3 gal
550.0 L |
Engine details ...  | |
SAME Diamond 270 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
SAME Diamond 270 Power | |
|---|---|
Engine (gross) | 266 hp
198.4 kW |
Engine (max) | 271 hp
202.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | pneumatic |
hydraulic | |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | load sensing |
Valves | 4 |
Pump flow | 31.7 gpm
120.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 23149 lbs
10500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540E/1000 |
Engine RPM | 540E@1630 |
Front PTO | independent |
Clutch | electro-hydraulic wet disc |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Weight | 19951 lbs
9049 kg |
Front tire | 600/65R38 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Diamond 230 - 270 published in 2010, by SAME |
Engine
Engine Detail — 436.1 ci / 7.1 L Diesel
Manufacturer | Deutz TCD2013 |
Configuration | turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled |
Displacement | 436.1 ci
7.1 L |
Bore/Stroke | 4.25x5.12 inches
108 x 130 mm |
Rated Power (gross) | 266 hp
198.4 kW |
Maximum Power (gross) | 271 hp
202.1 kW |
Air cleaner | dry |
Rated RPM | 2350 |
Torque | 775.9 lb-ft
1052.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission

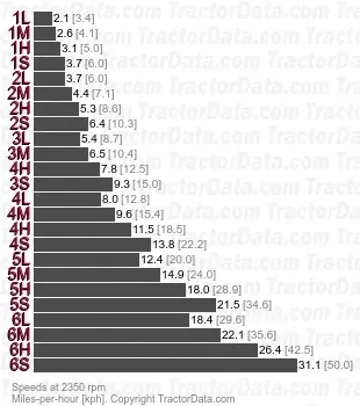

Transmission — 40 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 40 forward and reverse |
Clutch | hydraulic wet disc |
Four power shift gears four creeper ranges and six field ranges with power shuttle. | |
With 710/70R42 rear tires. | |
 | |
Dimensions
SAME Diamond 270 Tires | |
|---|---|
Ag front | 600/65R38 |
Ag rear | 710/70R42 |
Dimensions | |
|---|---|
Wheelbase | 121.6 inches
308 cm |
Length | 196.9 inches
500 cm |
Width | 108.3 inches
275 cm |
Height (cab) | 128.2 inches
325 cm |
Weight | 19951 lbs
9049 kg |
Ground clearance | 23.6 inches
59 cm |
Front tread | 70.9 to 78.7 inches
180 to 199 cm |
Rear tread | 70.9 to 78.7 inches
180 to 199 cm |
Photos
SAME Diamond 270 tractor photo
