SAME Diamond 260

The SAME Diamond 260 is a tractor produced by Same. It is equipped with a 436.05 ci 7.1 L engine. The listed engine power is Diesel (listed): 260 hp / 193.9 kW. Transmission: ZF T 7300. Operating weight: 18629 lbs 8450 kg.

Engine Power
Diesel (listed): 260 hp / 193.9 kW
Fuel & Capacities
145.3 gal 550.0 L
Transmission
ZF T 7300
Operating Weight
18629 lbs 8450 kg

Overview

SAME Diamond 260 tractor photo
1999 - 2004 Diamond SeriesRow-Crop tractor Diamond Series Row-Crop tractor
Production
Manufacturer
SAME
Row-Crop tractor
Variants
Agrotron 260
similar Deutz-Fahr model
Victory 260
similar Lamborghini model
SAME Diamond 260 Engine
SAME 7.1L 6-cyl diesel
Fuel tank
145.3 gal 550.0 L
Engine details ...
SAME Diamond 260 Transmission
40-speed four-speed power shift
Transmission details ...
SAME Diamond 260 Power
Engine
260 hp 193.9 kW
Mechanical
Four-wheel drive
Differential lock
electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes
pneumatic
hydraulic OptOptional
Cab standard with air-conditioning.
Hydraulics
Type
closed center
Pump flow
31.7 gpm 120.0 lpm
Tractor hitch
Rear Type
III
Rear lift
23149 lbs 10500 kg
Front Hitch
II OptOptional
Front lift
11244 lbs 5100 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic wet disc
Rear PTO Type
1000 (1.75)
Front PTO
independent OptOptional
Front PTO Type
1000
Dimensions & Tires
Wheelbase
121.5 inches 308 cm
Weight
18629 lbs 8450 kg
Front tire
520/70R34
Rear tire
620/70R42
Full dimensions and tires ...
References
Diamond 260 references literature
Agrotron 230-260 published in 1998, by Deutz-Fahr
Diamond 230 - 260 published in 1999, by SAME

Engine

Engine Detail — 436.05 ci / 7.1 L Diesel

Manufacturer
SAME BF6M 1013 FC
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement
436.05 ci 7.1 L
Bore/Stroke
4.25x5.12 inches 108 x 130 mm
Power
260 hp 193.9 kW
Rated RPM
2350
Torque
745 lb-ft 1010.2 Nm
Torque RPM
1350
Starter type
electric
SAME Diamond 260 Engine
SAME Diamond 260 engine image

Transmission

Transmission — ZF T 7300

Transmission
ZF T 7300
Type
four-speed power shift
Gears
40 forward and reverse
Clutch
hydraulic wet disc
Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.

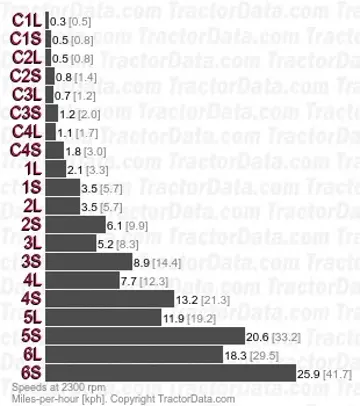

Diamond 260 T 7300 four-speed power shift speeds

Dimensions

SAME Diamond 260 Tires
Standard tires (ag)
Front: 520/70R34. Rear: 620/70R42
Optional tires (ag)
Front: 600/70R30. Rear: 710/70R38
Front: 520/70R38. Rear:
Front: 650/85R38. Rear:
Dimensions
Wheelbase
121.5 inches 308 cm
Length
171.7 inches 436 cm
202 inches*With hitch 513 cm
Width
98 inches*Minimum width. 248 cm
Height (cab)
127 inches 322 cm
Shipping weight
18629 lbs 8450 kg
Ground clearance
23.6 inches 59 cm
Front tread
70.9 to 78.7 inches 180 to 199 cm
Rear tread
70.9 to 78.7 inches 180 to 199 cm

Photos

SAME Diamond 260 tractor photo

SAME Diamond 260 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Same Diamond 260 based on its 260 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Diamond 260.

Estimated Continuous Field Runtime: 10.7 hrs

Approximately 10.7 hours of continuous field operation at ~75% rated power on a full tank (145.3 gal / 550 L).

Estimated 75% Load Fuel Burn~13.5 gal/hr (51.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Same Diamond 260 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Diamond 260.

Converted Equivalents:

Horsepower (HP)260 hp
Kilowatts (kW)193.9 kW
Metric Horsepower (PS / CV)263.6 PS
