SAME Explorer 80

The SAME Explorer 80 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (listed): 80 hp / 59.7 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 20 forward and reverse. Operating weight: 6173 to 7275 pounds.

Overview

	1986 - 1990 Explorer SeriesUtility tractor Explorer Series Utility tractor

Production
Manufacturer	SAME
Utility tractor

SAME Explorer 80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Engine details ...

SAME Explorer 80 Power
Engine	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Available cab with optional heater.

Hydraulics
Pressure	2602 psi 179.4 bar
Pump flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	7563 lbs 3430 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	95.1 inches 241 cm
4WD Wheelbase	91.3 inches 231 cm
Weight	6173 to 7275 pounds
Front tire	7.50-18
2WD Rear tire	16.9/14-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	64
Battery volts	12

References
SAME Tractors that are true specialists published by AGCO

Engine

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer	SAME 1000 4-A
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	244.1 ci 4.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Power	80 hp 59.7 kW
Air cleaner	dry
Rated RPM	2500
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
12-speed
24-speed
20-speed

Transmission — 12 forward and reverse

Gears	12 forward and reverse
Clutch	hydraulic dry disc
Four gears (1-4) in three ranges.
With 16.9/14-34 rear tires.

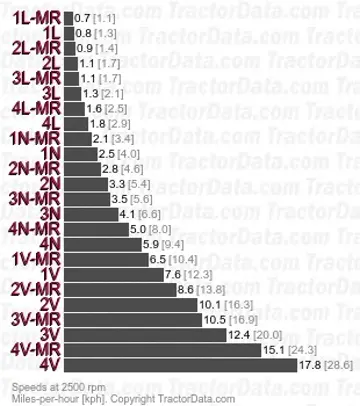

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Four gears (1-4) in three ranges with additional two-speed mini-reduction range shift in forward.
With 16.9/14-34 rear tires.

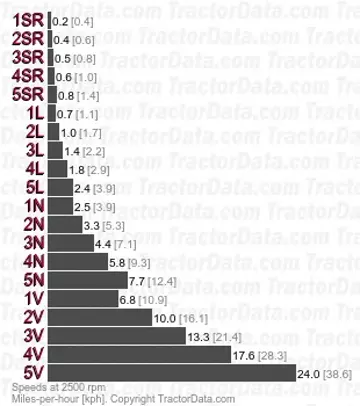

Transmission — 20 forward and reverse

Gears	20 forward and reverse
Five gears (1-5) in four ranges.
With 16.9/14-34 rear tires.

Dimensions

SAME Explorer 80 Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 16.9/14-34
4WD Standard tires (ag)	Front: 14.9/13-24. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
2WD Optional tires (ag)	Front: 7.50-16. Rear: 18.4/15-30
2WD Optional tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 7.50-20. Rear: 14.9/13-38
2WD Optional tires (ag)	Front: 7.50-20. Rear: 18.4/15-34
4WD Optional tires (ag)	Front: 12.4/11-24. Rear: 16.9/14-30
4WD Optional tires (ag)	Front: 13.6/12-24. Rear: 18.4/15-30
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 13.6/12-28. Rear: 14.9/13-38

Dimensions
2WD Wheelbase	95.1 inches 241 cm
4WD Wheelbase	91.3 inches 231 cm
2WD Length	145.2 inches 368 cm
4WD Length	146.9 inches 373 cm
Width	73.6 inches*Minimum width 186 cm
2WD Ground clearance	20.5 inches 52 cm
4WD Ground clearance	17.5 inches 44 cm
2WD Front tread	55.1 to 78.7 inches 139 to 199 cm
4WD Front tread	63 to 70.9 inches 160 to 180 cm
Rear tread	59.1 to 82.7 inches 150 to 210 cm

SAME Explorer 80 Weight
2WD ROPS	6173 lbs 2800 kg
2WD Cab	6614 lbs 3000 kg
4WD ROPS	6834 lbs 3099 kg
4WD Cab	7275 lbs 3299 kg

SAME Explorer 80 Height
2WD Hood	64.7 inches 164 cm
4WD Hood	63.9 inches 162 cm
ROPS	100.1 inches 254 cm
Cab	102.1 inches 259 cm
