SAME Explorer II 80

The SAME Explorer II 80 is a tractor produced by Same. It is equipped with a 244 ci 4.0 L engine. The listed engine power is Diesel (listed): 79.1 hp / 59.0 kW. Transmission: Syncro Power. Operating weight: 6791 to 7385 pounds.

Engine Power

Diesel (listed): 79.1 hp / 59.0 kW

Fuel & Capacities

29.1 gal 110.1 L

Transmission

Syncro Power

Operating Weight

6791 to 7385 pounds

Overview

	1989 - 2003 Explorer II SeriesUtility tractor Explorer II Series Utility tractor

Production
Manufacturer	SAME
Utility tractor

Variants
5680	similar AGCO Allis model

SAME Explorer II 80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Engine details ...

SAME Explorer II 80 Power
Engine	79.1 hp 59.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear *Electro-hydraulic optional.
Power steering
Hydraulic wet disc brakes
Cab standard with heat. Air-conditioning optional.

Hydraulics
Type	open center
Pump flow	11.1 gpm 42.0 lpm

Tractor hitch
Rear Type	II
Rear lift	7607 lbs 3450 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2199
	540E@1717
	1000@2450
	1000E@1913
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
2WD Wheelbase	94.9 inches 241 cm
4WD Wheelbase	91.3 inches 231 cm
Weight	6791 to 7385 pounds
Front tire	10.00-16
2WD Rear tire	16.9/14-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	SAME 1000.4 A1
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled inline
Displacement	244 ci 4.0 L
Bore/Stroke	4.13x4.54 inches 105 x 115 mm
Power	79.1 hp 59.0 kW
Air cleaner	dry
Rated RPM	2500
Starter volts	12

Transmission

Transmission options
15-speed synchronized
20-speed synchronized
30-speed two-speed power shift
40-speed two-speed power shift

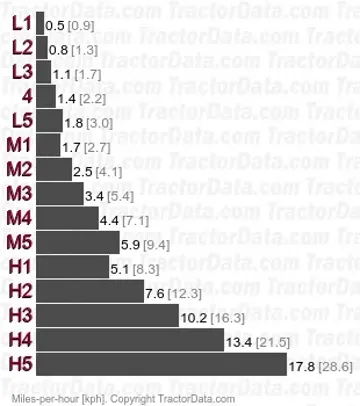

Transmission — 15 forward and reverse synchronized

Type	synchronized
Gears	15 forward and reverse
Clutch	hydraulic dry disc

Transmission — 20 forward and reverse synchronized

Type	synchronized
Gears	20 forward and reverse

Transmission — Syncro Power

Transmission	Syncro Power
Type	two-speed power shift
Gears	30 forward and reverse

Transmission — Syncro Power

Transmission	Syncro Power
Type	two-speed power shift
Gears	40 forward and reverse

Dimensions

SAME Explorer II 80 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 16.9/14-34
4WD Standard tires (ag)	Front: 14.9/13-24. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38

Dimensions
2WD Wheelbase	94.9 inches 241 cm
4WD Wheelbase	91.3 inches 231 cm
2WD Length	144.5 inches 367 cm
4WD Length	148.8 inches 377 cm
Width	81.1 inches 205 cm
Height (hood)	64 inches 162 cm
Height (cab)	102.2 inches 259 cm
2WD Weight	6791 lbs 3080 kg
4WD Weight	7385 lbs 3349 kg
2WD Ground clearance	20.5 inches 52 cm
4WD Ground clearance	17.7 inches 44 cm
2WD Front tread	55.1 to 78.7 inches 139 to 199 cm
4WD Front tread	63.8 to 71.7 inches 162 to 182 cm
Rear tread	59.1 to 82.7 inches 150 to 210 cm

Photos

SAME Explorer II 80 utility tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Same Explorer II 80 based on its 79.1 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Explorer II 80.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (29.1 gal / 110.2 L).

Estimated 75% Load Fuel Burn~4.1 gal/hr (15.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
