SAME Krypton 105
The SAME Krypton 105 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (net): 95.9 hp / 71.5 kW; Diesel (gross): 100.6 hp / 75.0 kW. Transmission: 16 forward and reverse. Drive type: crawler. Operating weight: 11466 lbs 5200 kg.
Engine Power
Diesel (net): 95.9 hp / 71.5 kW; Diesel (gross): 100.6 hp / 75.0 kW
Drive & Traction
crawler
Fuel & Capacities
34.3 gal
129.8 L
Transmission
16 forward and reverse
Operating Weight
11466 lbs
5200 kg
Overview
 | 2004 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2004 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2004 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | SAME |
Agricultural Crawler tractor | |
SAME Krypton 105 Engine | |
|---|---|
SAME 4.0L 4-cyl diesel | |
Fuel tank | 34.3 gal
129.8 L |
Engine details ...  | |
SAME Krypton 105 Power | |
|---|---|
Engine (gross) | 100.6 hp
75.0 kW |
Engine (net) | 95.9 hp
71.5 kW |
Mechanical | |
|---|---|
Drive | crawler |
Four-post ROPS. | |
Hydraulics | |
|---|---|
Pump flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear lift | 6615 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/540E/1000 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 11466 lbs
5200 kg |
15.75-inch tracks | |
Full dimensions and tracks ...  | |
References | |
|---|---|
 | |
Krypton 95-105 published in 2004, by SAME |
Engine
| 2004 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2004 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2004 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Engine Detail — 244.1 ci / 4.0 L Diesel
Manufacturer | SAME 1000.4 WT |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 244.1 ci
4.0 L |
Bore/Stroke | 4.13x4.55 inches
105 x 116 mm |
Emissions | Stage II |
Rated Power (net) | 95.9 hp
71.5 kW |
Rated Power (gross) | 100.6 hp
75.0 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Transmission
| 2004 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2004 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2004 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Transmission options | |
|---|---|
16-speed shuttle | |
16-speed creeper |

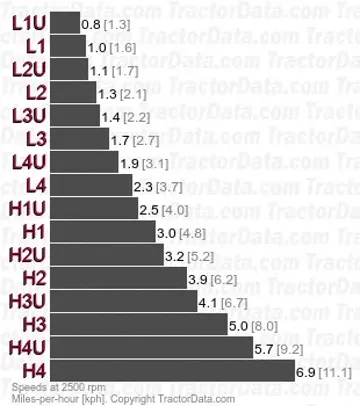

Transmission — 16 forward and reverse shuttle
Type | shuttle |
Gears | 16 forward and reverse |
Four synchronized gears in two ranges with under-drive and mechanical shuttle. | |
 | |
Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Four synchronized gears in two ranges with mechanical shuttle and creeper. | |
 | |
Dimensions
| 2004 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2004 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2004 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
SAME Krypton 105 Tracks | |
|---|---|
Width | 15.75 inches
40 cm |
Length on ground | 164.5 inches
417 cm |
Area on ground | 5181 in²
3.3 m² |
Width | 17.7 inches
44 cm |
Length on ground | 164.5 inches
417 cm |
Area on ground | 5823 in²
3.8 m² |
Dimensions | |
|---|---|
Wheelbase | 65 inches
165 cm |
Length | 134.3 inches
341 cm |
Width | 70.9 inches
180 cm |
Weight | 11466 lbs
5200 kg |
Ground clearance | 15.8 inches
40 cm |
Gauge | 53.2 inches
135 cm |
Photos
SAME Krypton 105 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Krypton 105.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Krypton 105 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Krypton 105.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
