SAME Row Crop 100
The SAME Row Crop 100 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (listed): 96 hp / 71.6 kW. Transmission: 20 forward and reverse. Operating weight: 7501 lbs 3402 kg.
Engine Power
Diesel (listed): 96 hp / 71.6 kW
Fuel & Capacities
24 gal
90.8 L
Transmission
20 forward and reverse
Operating Weight
7501 lbs
3402 kg
Overview
 | Row Crop SeriesHigh-Clearance tractor |
|---|---|
Row Crop Series | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | SAME |
High-Clearance tractor | |
SAME Row Crop 100 Engine | |
|---|---|
SAME 4.0L 4-cyl diesel | |
Fuel tank | 24 gal
90.8 L |
Engine details ...  | |
SAME Row Crop 100 Transmission | |
|---|---|
20-speed synchronized | |
Transmission details ...  |
SAME Row Crop 100 Power | |
|---|---|
Engine | 96 hp
71.6 kW |
PTO (claimed) | 88 hp
65.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical |
Power steering | |
Hydraulic wet disc brakes | |
Four-post ROPS. | |
Hydraulics | |
|---|---|
Valves | 2 |
Pump flow | 15.8 gpm
59.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position, float, and draft control |
Rear lift | 6473 lbs
2936 kg |
8900 lbsOptOptional
4037 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Weight | 7501 lbs
3402 kg |
Front tire | 7.50-20 |
2WD Rear tire | 13.6R38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 244.1 ci / 4.0 L Diesel
Manufacturer | SAME 1000.4 WT |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 244.1 ci
4.0 L |
Bore/Stroke | 4.13x4.54 inches
105 x 115 mm |
Power | 96 hp
71.6 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission

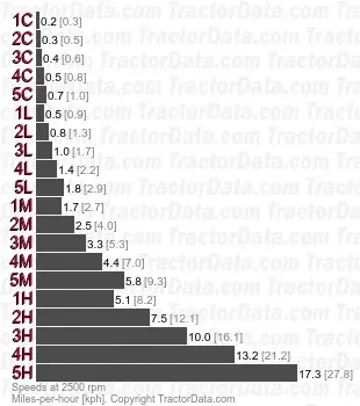

Transmission — 20 forward and reverse synchronized
Type | synchronized |
Gears | 20 forward and reverse |
Clutch | hydraulic dry disc |
Five synchronized gears in four ranges with shuttle. | |
With 13.6R38 tires. Reverse speeds are about 5% slower than forward. | |
 | |
Dimensions
SAME Row Crop 100 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 13.6R38 |
4WD Standard tires (ag) | Front: 13.6R38. Rear: 13.6R38 |
Dimensions | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Length | 169.4 inches
430 cm |
Width | 85.9 inches*Minimum width
218 cm |
Height (ROPS) | 101.2 inches
257 cm |
Weight | 7501 lbs
3402 kg |
Clearance (front axle) | 23.8 inches
60 cm |
Front tread | 71.2 to 100.7 inches
180 to 255 cm |
Rear tread | 63.3 to 92.7 inches
160 to 235 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Same Row Crop 100 based on its 96 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Row Crop 100.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (24 gal / 90.8 L).
Estimated 75% Load Fuel Burn~5 gal/hr (18.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Row Crop 100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Row Crop 100.
Converted Equivalents:
Horsepower (HP)96 hp
Kilowatts (kW)71.6 kW
Metric Horsepower (PS / CV)97.3 PS
Direct Competitor Comparison
Compare SAME Row Crop 100 against same-era industry alternatives in the same horsepower class.
Current Model
Same
SAME Row Crop 100
Engine Power:Diesel (listed): 96 hp / 71.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 844-S
Engine Power:87
Production Years:1975 - 1989
