SAME Silver 105
The SAME Silver 105 is a tractor produced by Same. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 100 hp 74.6 kW. Transmission: Agroshift Creeper. Operating weight: 8730 to 9524 pounds.
Engine Power
100 hp
74.6 kW
Fuel & Capacities
46.2 gal
174.9 L
Transmission
Agroshift Creeper
Operating Weight
8730 to 9524 pounds
Same Silver 105 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004 - 2009
Silver SeriesUtility tractor |
|---|---|
2004 - 2009 | |
Silver Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | SAME |
Utility tractor | |
SAME Silver 105 Engine | |
|---|---|
SAME 6.0L 6-cyl diesel | |
Fuel tank | 46.2 gal
174.9 L |
Engine details ...  | |
SAME Silver 105 Power | |
|---|---|
Engine (gross) | 102.5 hp
76.4 kW |
Engine (net) | 100 hp
74.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab available with air-conditioning. | |
Hydraulics | |
|---|---|
Pump flow | 14.3 gpm
54.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 10584 lbs
4800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/540E/1000/1000E |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 103.7 inches
263 cm |
Weight | 8730 to 9524 pounds |
Rear tire | 520/70R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Engine
Engine Detail — 366.1 ci / 6.0 L Diesel
Manufacturer | SAME 1000.6 WA |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 366.1 ci
6.0 L |
Bore/Stroke | 4.13x4.55 inches
105 x 116 mm |
Emissions | Stage II |
Rated Power (net) | 100 hp
74.6 kW |
Rated Power (gross) | 102.5 hp
76.4 kW |
Air cleaner | dry |
Rated RPM | 2300 |
Torque | 288.4 lb-ft
391.1 Nm |
Torque RPM | 1400 |
Starter type | electric |
Transmission
Transmission options | |
|---|---|
15-speed synchromesh | |
45-speed partial power shift | |
60-speed |
Transmission — 15 forward and reverse synchromesh
Type | synchromesh |
Gears | 15 forward and reverse |
Five synchronized gears in three ranges. Also available with creeper range providing 20 gears. | |
 | |
Transmission — Agroshift
Transmission | Agroshift |
Type | partial power shift |
Gears | 45 forward and reverse |
Five synchronized gears in three ranges with three-speed power shift. | |

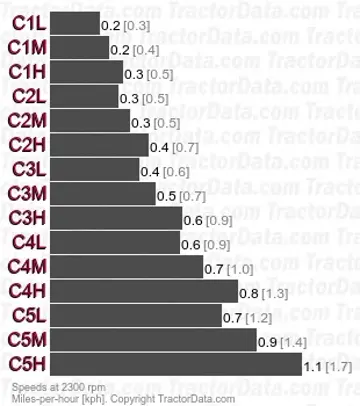

Transmission — Agroshift Creeper
Transmission | Agroshift Creeper |
Gears | 60 forward and reverse |
Optional creeper range for Agroshift transmission. | |
 | |
Dimensions
SAME Silver 105 Tires | |
|---|---|
Ag rear | 520/70R34 |
Dimensions | |
|---|---|
Wheelbase | 103.7 inches
263 cm |
Length | 150.2 inches
381 cm |
Width | 83.5 inches*Minimum width.
212 cm |
Height (cab) | 105.7 inches
268 cm |
ROPS Weight | 8730 lbs
3959 kg |
Cab Weight | 9524 lbs
4320 kg |
Ground clearance | 19.1 inches
48 cm |
2WD Front tread | 55.1 to 78.7 inches
139 to 199 cm |
4WD Front tread | 63 to 82.7 inches
160 to 210 cm |
Rear tread | 63 to 82.7 inches
160 to 210 cm |
