SAME Silver 85

The SAME Silver 85 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (net): 85 hp / 63.4 kW; Diesel (gross): 90 hp / 67.1 kW. Transmission: Agroshift Creeper. Operating weight: 8146 to 8940 pounds.

Overview

	2004 - 2009 Silver SeriesUtility tractor Silver Series Utility tractor

Production
Manufacturer	SAME
Utility tractor

SAME Silver 85 Engine
SAME 4.0L 4-cyl diesel
Fuel tank	39.6 gal 149.9 L
Engine details ...

SAME Silver 85 Power
Engine (gross)	90 hp 67.1 kW
Engine (net)	85 hp 63.4 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab available with air-conditioning.

Hydraulics
Pump flow	14.3 gpm 54.1 lpm

Tractor hitch
Rear lift	10582 lbs 4799 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000/1000E
Front PTO	independent
Front PTO Type	1000

Dimensions & Tires
Wheelbase	93.5 inches 237 cm
Weight	8146 to 8940 pounds
Rear tire	16.9R34
Full dimensions and tires ...

Electrical
Ground	negative

Engine

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer	SAME 1000.4 WT
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244.1 ci 4.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Emissions	Stage II
Rated Power (net)	85 hp 63.4 kW
Rated Power (gross)	90 hp 67.1 kW
Air cleaner	dry
Rated RPM	2300
Torque	253.7 lb-ft 344.0 Nm
Torque RPM	1400
Starter type	electric

Transmission

Transmission options
15-speed synchromesh
45-speed partial power shift
60-speed

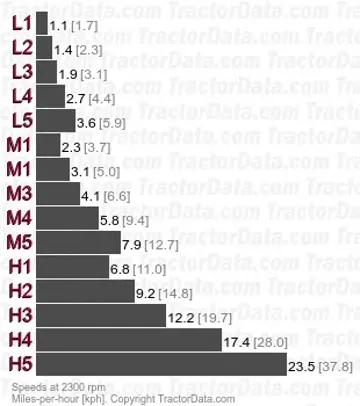

Transmission — 15 forward and reverse synchromesh

Type	synchromesh
Gears	15 forward and reverse
Five synchronized gears in three ranges. Also available with creeper range providing 20 gears.

Transmission — Agroshift

Transmission	Agroshift
Type	partial power shift
Gears	45 forward and reverse
Five synchronized gears in three ranges with three-speed power shift.

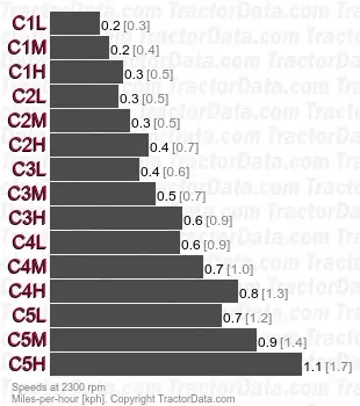

Transmission — Agroshift Creeper

Transmission	Agroshift Creeper
Gears	60 forward and reverse
Optional creeper range for Agroshift transmission.

Dimensions

SAME Silver 85 Tires
Ag rear	16.9R34

Dimensions
Wheelbase	93.5 inches 237 cm
Length	149 inches 378 cm
Width	76.4 inches*Minimum width. 194 cm
Height (cab)	104.7 inches 265 cm
ROPS Weight	8146 lbs 3695 kg
Cab Weight	8940 lbs 4055 kg
Ground clearance	18.1 inches 45 cm
Front tread	59.1 to 82.7 inches 150 to 210 cm
Rear tread	59.1 to 82.7 inches 150 to 210 cm

Photos

SAME Silver 85 tractor photo
