SAME Tiger Six 105

The SAME Tiger Six 105 is a tractor produced by Same. It is equipped with a 331.2 ci 5.4 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 12 forward and 3 reverse. Operating weight: 8333 to 9788 pounds.

Overview

	1977 - 1983 Row-Crop tractor
1977 - 1983
Row-Crop tractor

Production
Manufacturer	SAME
Row-Crop tractor

SAME Tiger Six 105 Engine
SAME 5.4L 6-cyl diesel
Fuel tank	35.7 gal 135.1 L
Engine details ...

SAME Tiger Six 105 Transmission
12-speed syncromesh
Transmission details ...

SAME Tiger Six 105 Power
Engine	105 hp 78.3 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Four-post ROPS. Cab optional with available air-conditioning.

Hydraulics
Pressure	2489 psi 171.6 bar
Pump flow	7.92 gpm 30.0 lpm
	15.85 gpm*Optional second hydraulic pump. 60.0 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft control
Rear lift	10495 lbs 4760 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	104.7 inches 265 cm
4WD Wheelbase	106.7 inches 271 cm
Weight	8333 to 9788 pounds
Front tire	7.50-20
2WD Rear tire	18.4/15-34
Full dimensions and tires ...

Engine

Engine Detail — 331.2 ci / 5.4 L Diesel

Manufacturer	SAME 986P
Fuel Type	Diesel
Configuration	6-cylinder, air-cooled
Displacement	331.2 ci 5.4 L
Bore/Stroke	3.86x4.72 inches 98 x 120 mm
Power	105 hp 78.3 kW
Air cleaner	dry
Compression	17:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and 3 reverse syncromesh

Type	syncromesh
Gears	12 forward and 3 reverse
Clutch	mechanical dry disc

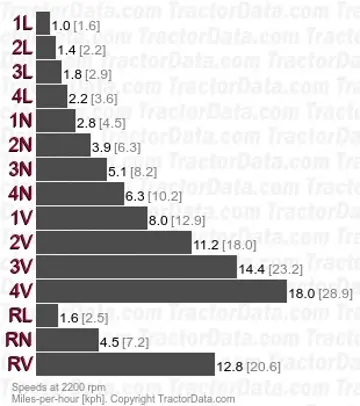

Four gears (1-4), plus reverse (R) in three ranges. Optional creeper range providing 24 forward gears.
With 18.4-34 rear tires.

Dimensions

SAME Tiger Six 105 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 18.4/15-34
	Front: . Rear:
4WD Standard tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-34
2WD Optional tires (ag)	Front: 7.50-20. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 9.00-16. Rear: 16.9/14-38
2WD Optional tires (ag)	Front: 7.50-20. Rear: 16.9/14-38
2WD Optional tires (ag)	Front: 9.00-16. Rear: 23.1/30-30
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 14.9/13-28. Rear: 16.9/14-38
4WD Optional tires (ag)	Front: 14.9/13-30. Rear: 18.4/15-38
4WD. Rear: Optional tires (ag)	Front: 14.8/13-24
4WD. Rear: Optional tires (ag)	Front: 23.1/18-30
4WD Optional tires (ag)	Front: 16.9/14-24. Rear: 23.1/18-30

Dimensions
2WD Wheelbase	104.7 inches 265 cm
4WD Wheelbase	106.7 inches 271 cm
2WD Length	170.5 inches 433 cm
4WD Length	175.6 inches 446 cm
Width	87.4 inches*Minimum width 221 cm
Ground clearance	18.7 inches 47 cm
2WD Front tread	66.9 to 90.5 inches 169 to 229 cm
4WD Front tread	66.9 to 86.2 inches 169 to 218 cm
Rear tread	68.9 to 84.6 inches 175 to 214 cm

SAME Tiger Six 105 Weight
2WD ROPS	8333 lbs 3779 kg
4WD ROPS	9193 lbs 4169 kg
2WD Cab	8928 lbs 4049 kg
4WD Cab	9788 lbs 4439 kg

SAME Tiger Six 105 Height
Hood	64.6 inches 164 cm
ROPS	105.5 inches 267 cm
Cab	109.4 inches 277 cm

Photos

SAME Tiger Six 105 tractor photo
