Schluter S900
The Schluter S900 is a tractor produced by Schluter. It is equipped with a 396.3 ci 6.5 L engine. The listed engine power is Engine Detail — 396.3 ci / 6.5 L (listed): 80 hp / 59.7 kW. Transmission: 8 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 8,379 lbs (2WD) 3800 kg.
Engine Power
Engine Detail — 396.3 ci / 6.5 L (listed): 80 hp / 59.7 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
26.4 gal
99.9 L
Transmission
8 forward and 4 reverse
Operating Weight
8,379 lbs (2WD)
3800 kg
Overview
 | 1964 - 1966 |
|---|
Production | |
|---|---|
Manufacturer | Schluter |
Schluter S900 Engine | |
|---|---|
6.5L 6-cyl | |
Fuel tank | 26.4 gal
99.9 L |
Engine details ...  | |
Schluter S900 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Schluter S900 Power | |
|---|---|
Engine | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD optional | |
Steering | mechanical |
Drum brakes | |
Tractor hitch | |
|---|---|
Rear lift | 3,308 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 103.5 inches
262 cm |
Weight | 8379 to 9151 pounds |
Front tire | 6.50-20 |
Rear tire | 13.6-36 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 396.3 ci / 6.5 L
Manufacturer | SD 105 W 6 |
Configuration | 6-cylinder |
Displacement | 396.3 ci
6.5 L |
Bore/Stroke | 4.134x4.921 inches
105 x 125 mm |
Power | 80 hp
59.7 kW |
Rated RPM | 1800 |
Torque | 224.2 lb-ft
304.0 Nm |
Torque RPM | 1400 |
Transmission
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Dimensions
Schluter S900 Tires | |
|---|---|
Ag front | 6.50-20 (2WD) |
10.5-18 (4WD) | |
Ag rear | 13.6-36 (2WD) |
16.9-30 (4WD) | |
Dimensions | |
|---|---|
Wheelbase | 103.5 inches
262 cm |
Length | 173.6 inches
440 cm |
Height | 76.0 inches
193 cm |
Weight | 8,379 lbs (2WD)
3800 kg |
9,151 lbs (4WD)
4150 kg | |
Photos

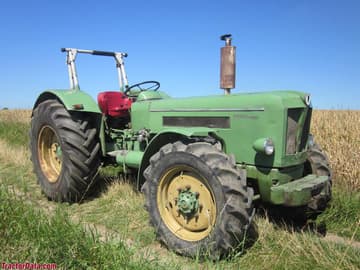

1965 Schluter S-900.
Recommended Implements & Sizing Guide
Engineering recommendations for Schluter S900 based on its 80 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Schluter S900.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).
Estimated 75% Load Fuel Burn~4.2 gal/hr (15.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Schluter S900 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Schluter S900.
Converted Equivalents:
Horsepower (HP)80 hp
Kilowatts (kW)59.7 kW
Metric Horsepower (PS / CV)81.1 PS
Direct Competitor Comparison
Compare Schluter S900 against same-era industry alternatives in the same horsepower class.
Current Model
Schluter
Schluter S900
Engine Power:Engine Detail — 396.3 ci / 6.5 L (listed): 80 hp / 59.7 kW
★ Baseline Reference
