Scotts S1742
The Scotts S1742 is a tractor produced by Scotts Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW. Transmission: Dana. Operating weight: 388 lbs 175 kg.
Engine Power
Gasoline (listed): 17 hp / 12.7 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Dana
Operating Weight
388 lbs
175 kg
Overview
 | 1999 - 2001
Lawn tractorJohn Deere built
Lawn tractor
John Deere built |
|---|
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts S1742 Engine | |
|---|---|
17HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Scotts S1742 Transmission | |
|---|---|
5-speed unsynchronized gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 388 lbs
175 kg |
Front tire | 15x6.50-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 190 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
References | |
|---|---|
 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10342) published in 1998 | |
Scotts Lawn Tractors S1642, S1742, and S2046 (OMGX10784 ) |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 311777 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 465 cc
28.4 ci |
Power | 17 hp
12.7 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1 qts
0.9 L |
Transmission
Transmission — Dana
Transmission | Dana |
Type | unsynchronized gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Scotts S1742 Tires | |
|---|---|
Lawn/turf front | 15x6.50-6 |
Lawn/turf rear | 20x8.0-8 |
Dimensions | |
|---|---|
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height | 38.6 inches
98 cm |
Weight | 388 lbs
175 kg |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Scotts |
Cutting width | 42 inches
106 cm |
Photos

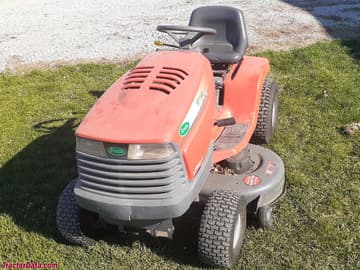

Scotts S1742
Scotts S1742
Recommended Implements & Sizing Guide
Engineering recommendations for Scotts Lawn Tractors Scotts S1742 based on its 17 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts S1742.
Estimated Continuous Field Runtime: 1.5 hrs
Approximately 1.5 hours of continuous field operation at ~75% rated power on a full tank (1.3 gal / 4.7 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Scotts Lawn Tractors Scotts S1742 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts S1742.
Converted Equivalents:
Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS
Direct Competitor Comparison
Compare Scotts S1742 against same-era industry alternatives in the same horsepower class.
Current Model
Scotts Lawn Tractors
Scotts S1742
Engine Power:Gasoline (listed): 17 hp / 12.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 154 Lo-Boy
Engine Power:15.6
Production Years:1968 - 1974
