Sears 502.60664
The Sears 502.60664 is a tractor produced by Sears Lawn Tractors. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: 5 forward and 1 reverse.
Engine Power
Gasoline (listed): 11 hp / 8.2 kW
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Overview
 | 1979
Lawn tractorMurray built
Lawn tractor
Murray built |
|---|
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Murray |
Lawn tractor | |
Built in Lawrenceburg, Tennessee, USA | |
Original price was CAD 1,450 in 1979 | |
Sears 502.60664 Engine | |
|---|---|
8.2KW Briggs & Stratton gasoline | |
Engine details ...  |
Sears 502.60664 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
Sears 502.60664 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
91 cm mid-mount mower deck | |
Snowblower |
36" Mower deck | |
|---|---|
Type | mid-mount Sears |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

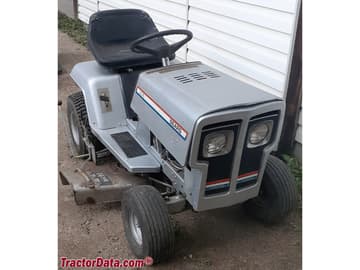

Sears 502.60664
Sears 502.60664
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sears Lawn Tractors Sears 502.60664.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sears Lawn Tractors Sears 502.60664 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sears Lawn Tractors Sears 502.60664.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
