Sears GT/19.9 917.25708

The Sears GT/19.9 917.25708 is a tractor produced by Sears Lawn Tractors. It is equipped with a 855 cc 52.2 ci engine. The rated power output is 19.9 hp 14.8 kW. Transmission: Peerless. Operating weight: 636 lbs 288 kg.

Engine Power
19.9 hp 14.8 kW
Fuel & Capacities
3.25 gal 12.3 L
Transmission
Peerless
Operating Weight
636 lbs 288 kg

Sears Lawn Tractors Sears GT/19.9 917.25708 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Sears GT/19.9 917.25708 tractor photo
1978 - 1980 Garden tractorRoper built
1978 - 1980
Garden tractor
Roper built
1978 - 1980
Garden tractor
Roper built
Production
Distributor
Sears
Manufacturer
Roper
Garden tractor
Original price was $2,879 in 1979
Sears GT/19.9 Engine
19.9HP Onan 855cc 2-cyl gasoline
Fuel tank
3.25 gal 12.3 L
Engine details ...
Sears GT/19.9 Transmission
6-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
mechanical
Dimensions & Tires
Weight
636 lbs 288 kg
Front tire
16x6.50-8
Rear tire
23x10.00-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
15
Battery volts
12
References

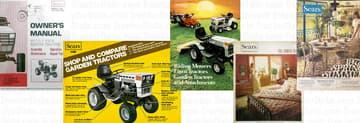

GT/19.9 917.25708 references literature
Owner's Manual GT/19.9 Twin Garden Tractor published in 1978
Garden Tractors published in 1980, by Sears
Riding Mowers, Lawn Tractors, Garden Tractors and Attachments published in 1979, by Sears
Fall/Winter published in 1978, by Sears
Spring/Summer Catalog published in 1978, by Sears

Engine

Sears GT/19.9 917.25708 tractor photo
1978 - 1980 Garden tractorRoper built
1978 - 1980
Garden tractor
Roper built
1978 - 1980
Garden tractor
Roper built

Engine Detail — 855 cc / 52.2 ci Gasoline

Manufacturer
Onan N52M
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled horizontal-shaft opposed twin
Displacement
855 cc 52.2 ci
Bore/Stroke
3.5625x2.625 inches 90 x 67 mm
Power (gross)
19.9 hp 14.8 kW
Compression
6.5:1
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.75 qts 1.7 L
Oil change
25 h

Transmission

Sears GT/19.9 917.25708 tractor photo
1978 - 1980 Garden tractorRoper built
1978 - 1980
Garden tractor
Roper built
1978 - 1980
Garden tractor
Roper built

Transmission — Peerless

Transmission
Peerless
Type
belt-driven gear
Gears
6 forward and 2 reverse
Clutch
mechanical idler pulley
Oil capacity
5 qts 4.7 L
Oil type
SAE 30
Oil change
480 h
Three gears (1-3) plus reverse (R) in two ranges (low/high).

Dimensions

Sears GT/19.9 917.25708 tractor photo
1978 - 1980 Garden tractorRoper built
1978 - 1980
Garden tractor
Roper built
1978 - 1980
Garden tractor
Roper built
Sears GT/19.9 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.00-12
Dimensions
Length
68.5 inches 173 cm
Width
36.5 inches 92 cm
Height
40 inches 101 cm
Shipping weight
636 lbs 288 kg

Attachments

Sears GT/19.9 917.25708 tractor photo
1978 - 1980 Garden tractorRoper built
1978 - 1980
Garden tractor
Roper built
1978 - 1980
Garden tractor
Roper built
Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

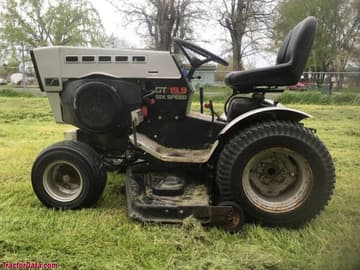

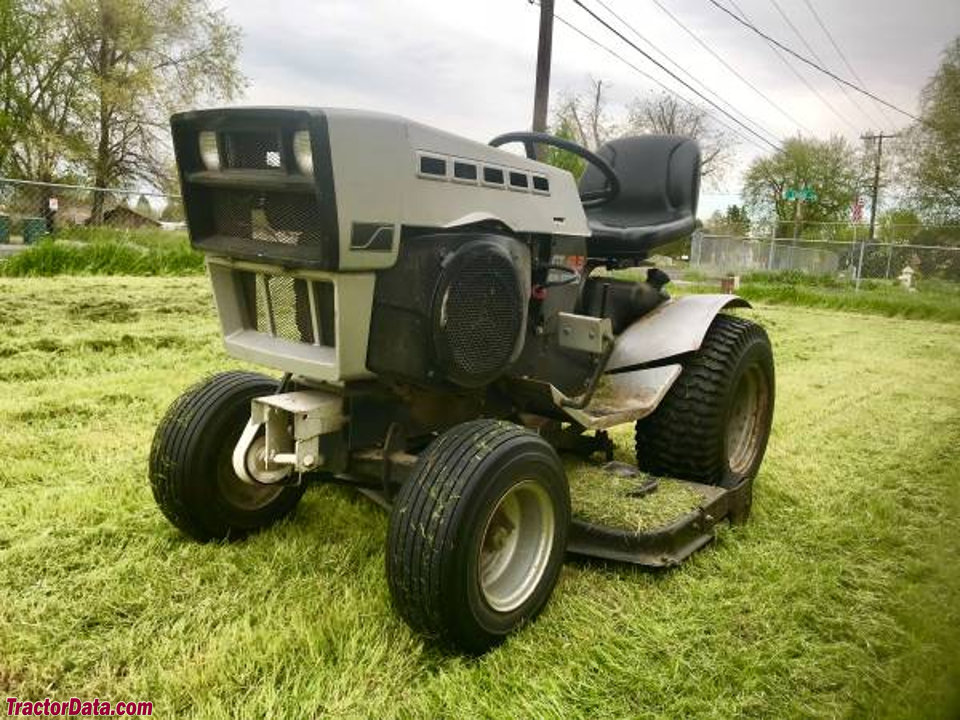

Sears GT/19.9 917.25708

Sears GT/19.9 917.25708

Sears GT/19.9 917.25708

Sears GT/19.9 917.25708
