Shibaura SE3040
The Shibaura SE3040 is a tractor produced by Shibaura. It is equipped with a 87.2 ci 1.4 L engine. The listed engine power is Diesel (listed): 30 hp / 22.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2568 lbs 1164 kg.
Engine Power
Diesel (listed): 30 hp / 22.4 kW
Fuel & Capacities
7.7 gal
29.1 L
Transmission
12 forward and 4 reverse
Operating Weight
2568 lbs
1164 kg
Overview
 | SE SeriesCompact Utility tractor |
|---|---|
SE Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Variants | |
|---|---|
SE3000 | 2WD |
SE3040 | 4WD |
Shibaura SE3040 Engine | |
|---|---|
Shibaura 1.4L 3-cyl diesel | |
Fuel tank | 7.7 gal
29.1 L |
Engine details ...  | |
Shibaura SE3040 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Shibaura SE3040 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
PTO (claimed) | 26.5 hp
19.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Mechanical shoe brakes | |
Two-post ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Valves | 1 |
Pump flow | 5.9 gpm
22.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 2425 lbs
1099 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Clutch | two-stage |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 2568 lbs
1164 kg |
Front tire | 6.00x16 |
Rear tire | 12.4x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 87.2 ci / 1.4 L Diesel
Manufacturer | Shibaura LEM853 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 87.2 ci
1.4 L |
Bore/Stroke | 3.35x3.31 inches
85 x 84 mm |
Power | 30 hp
22.4 kW |
Compression | 21.1:1 |
Rated RPM | 2800 |
Operating RPM | 1400-2800 |
Torque | 60.5 lb-ft
82.0 Nm |
Torque RPM | 1800 |
Starter | electric |
Starter volts | 12 |
Transmission

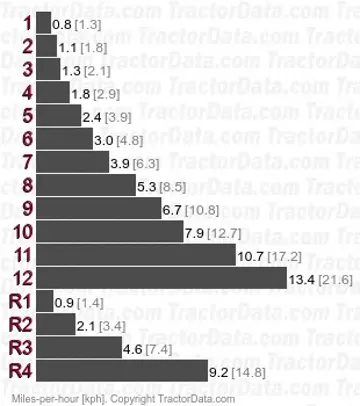

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
 | |
Dimensions
Shibaura SE3040 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 12.4x24 |
Dimensions | |
|---|---|
Length | 118.9 inches
302 cm |
Width | 62.2 inches
157 cm |
Height (steering wheel) | 59.8 inches
151 cm |
Weight | 2568 lbs
1164 kg |
Max weight | 6280 lbs
2848 kg |
Ground clearance | 13.8 inches
35 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 45.7 to 61 inches
116 to 154 cm |
Photos
Shibaura SE3040 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Shibaura SE3040 based on its 30 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Shibaura SE3040.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (7.7 gal / 29.1 L).
Estimated 75% Load Fuel Burn~1.6 gal/hr (5.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Shibaura SE3040 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Shibaura SE3040.
Converted Equivalents:
Horsepower (HP)30 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.4 PS
Direct Competitor Comparison
Compare Shibaura SE3040 against same-era industry alternatives in the same horsepower class.
Current Model
Shibaura
Shibaura SE3040
Engine Power:Diesel (listed): 30 hp / 22.4 kW
★ Baseline Reference
