Shibaura SP2500

The Shibaura SP2500 is a tractor produced by Shibaura. It is equipped with a 81.2 ci 1.3 L engine. The rated power output is 24.7 hp 18.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1894 lbs 859 kg.

Overview

	SP SeriesCompact Utility tractor
SP Series
Compact Utility tractor

Production
Manufacturer	Shibaura
Compact Utility tractor

Variants
SP2500	2WD
SP2540	4WD

Shibaura SP2500 Engine
Shibaura 1.3L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Shibaura SP2500 Transmission
12-speed synchromesh
Transmission details ...

Shibaura SP2500 Power
Engine	24.7 hp 18.4 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical drum brakes
Open operator station.

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2976 lbs 1349 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	559@2600
	778@2600
	1242@2600

Dimensions & Tires
Wheelbase	58.3 inches 148 cm
Weight	1894 lbs 859 kg
Front tire	4.00-15
Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	70

References
SP Series published by Shibaura
SP 2500 - SP 2540 published by Shibaura-Paget

Engine

Engine Detail — 81.2 ci / 1.3 L Diesel

Manufacturer	Shibaura J843
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	81.2 ci 1.3 L
Bore/Stroke	3.307x3.15 inches 84 x 80 mm
Power	24.7 hp 18.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

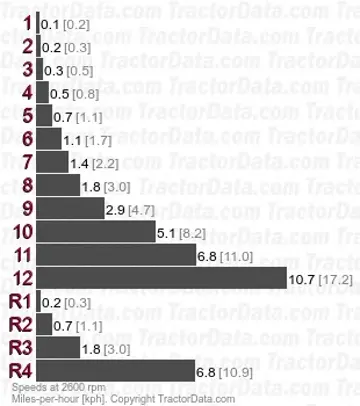

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	dry disc

Dimensions

Shibaura SP2500 Tires
Standard tires (ag)	Front: 4.00-15. Rear: 9.5-24

Dimensions
Wheelbase	58.3 inches 148 cm
Length	100 inches 254 cm
Width	46.7 inches 118 cm
Height	71.7 inches 182 cm
Weight	1894 lbs 859 kg
Ground clearance	12.6 inches 32 cm
Front tread	37 inches 93 cm
Rear tread	37.4 inches 94 cm
