Shibaura GT14

The Shibaura GT14 is a tractor produced by Shibaura Lawn Tractors. It is equipped with a 617 cc 37.65 ci engine. The listed engine power is Diesel (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 189.6 lbs 86 kg.

Overview

	Lawn tractor	Lawn tractor

Production
Manufacturer	Shibaura
Lawn tractor

Shibaura GT14 Engine
10.4KW Shibaura 617cc 3-cyl diesel
Fuel tank	2.9 gal 11.0 L
Engine details ...

Shibaura GT14 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	47.2 inches 119 cm
Weight	773.8 lbs 350 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	35

References
Lawn & Garden Tractor GT14 published by Shibaura
U.K. Shibaura Catalog published in 1988, by BV Techno-Import

Engine

Engine Detail — 617 cc / 37.65 ci Diesel

Manufacturer	Shibaura E643
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	617 cc 37.65 ci
Power (gross)	14 hp 10.4 kW
Rated RPM	3200
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Shibaura GT14 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47.2 inches 119 cm
Length	70.8 inches 179 cm
Height (steering wheel)	44.9 inches 114 cm
Weight	773.8 lbs 350 kg

Attachments

48" Mower deck
Type	mid-mount Shibaura
	3-blade
Cutting width	48 inches 121 cm
Weight	189.6 lbs 86 kg
Cut height	1 to 4 inch 2 to 10 cm

Photos

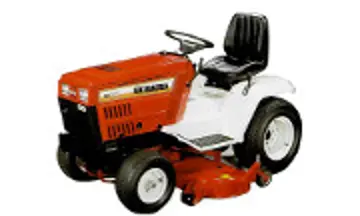

Shibaura GT14 tractor photo
