Shibaura GT161

The Shibaura GT161 is a tractor produced by Shibaura Lawn Tractors. It is equipped with a 676 cc 41.3 ci engine. The listed engine power is Diesel (listed): 16 hp / 11.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 842 lbs 381 kg.

Overview

	1992 - 1997 Garden tractor

Production
Manufacturer	Shibaura
Garden tractor

Shibaura GT161 Engine
11.9KW Shibaura 676cc 3-cyl diesel
Fuel tank	4.2 gal 15.9 L
Engine details ...

Shibaura GT161 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Mechanical disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	49.8 inches 126 cm
Weight	842 lbs 381 kg
Front tire	16X6.50-8
Rear tire	23X10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	28

References
Lawn & Garden Tractor published by Shibaura

Engine

Engine Detail — 676 cc / 41.3 ci Diesel

Manufacturer	Shibaura E673
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft
Displacement	676 cc 41.3 ci
Bore/Stroke	2.64x2.52 inches 67 x 64 mm
Power	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Shibaura GT161 Tires
Lawn/turf front	16X6.50-8
Lawn/turf rear	23X10.50-12

Dimensions
Wheelbase	49.8 inches 126 cm
Length	75.2 inches 191 cm
Width	39 inches 99 cm
Height (steering wheel)	47.6 inches 120 cm
Weight	842 lbs 381 kg
Ground clearance	6.3 inches 16 cm
Front tread	30.3 inches 76 cm
Rear tread	26.2/28.1 inches 66/71 cm

Attachments

Attachment overview
111 cm mid-mount mower deck
121 cm mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

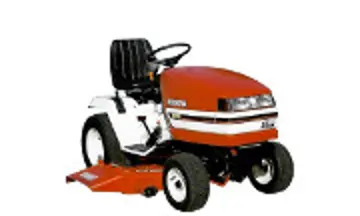

Shibaura GT161 tractor photo
