Shibaura GT181

The Shibaura GT181 is a tractor produced by Shibaura Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 787 lbs 356 kg.

Overview

	1992 - 1997 Garden tractor

Production
Manufacturer	Shibaura
Garden tractor

Shibaura GT181 Engine
13.4KW Kohler 691cc 2-cyl gasoline
Fuel tank	4.2 gal 15.9 L
Engine details ...

Shibaura GT181 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	49.8 inches 126 cm
Weight	787 lbs 356 kg
Front tire	16X6.50-8
Rear tire	23X10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	28

References
Lawn & Garden Tractor published by Shibaura

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer	Kohler M18QS
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	691 cc 42.18 ci
Bore/Stroke	3.125x2.75 inches 79 x 70 mm
Power	18 hp 13.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Shibaura GT181 Tires
Lawn/turf front	16X6.50-8
Lawn/turf rear	23X10.50-12

Dimensions
Wheelbase	49.8 inches 126 cm
Length	75.2 inches 191 cm
Width	39 inches 99 cm
Height (steering wheel)	47.6 inches 120 cm
Weight	787 lbs 356 kg
Ground clearance	6.3 inches 16 cm
Front tread	30.3 inches 76 cm
Rear tread	26.2/28.1 inches 66/71 cm

Attachments

Attachment overview
111 cm mid-mount mower deck
121 cm mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

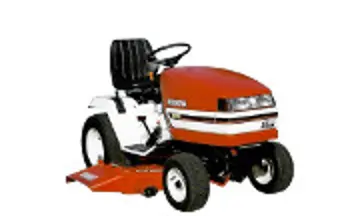

Shibaura GT181 tractor photo
