simplicity 9518
 | 1981 - 1983
9500 SeriesSub-Compact Utility tractorHinomoto built | 1981 - 1983 | 9500 Series | Sub-Compact Utility tractor | Hinomoto built |
|---|---|---|---|---|---|
1981 - 1983 | |||||
9500 Series | |||||
Sub-Compact Utility tractor | |||||
Hinomoto built | |||||
1981 - 1983 | |
|---|---|
9500 Series | |
Sub-Compact Utility tractor | |
Hinomoto built |
Engine Detail | |
|---|---|
Toyosha | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 61.27 ci
1.0 L |
Bore/Stroke | 2.87x3.15 inches
73 x 80 mm |
Power | 18 hp
13.4 kW |
Compression | 22.5:1 |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 3.2 qts
3.0 L |

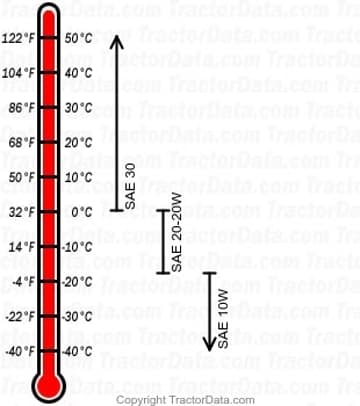

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.3 qts
2.2 L |
Oil change | 50 h |

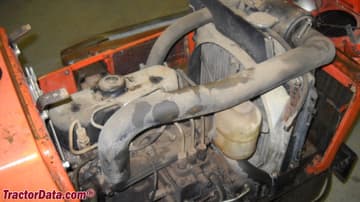

Simplicity 9518 Engine | |
|---|---|
 | |
Image courtesy of Jacob Lorenz |
