simplicity 9518
 | 1981 - 1983
9500 SeriesSub-Compact Utility tractorHinomoto built | 1981 - 1983 | 9500 Series | Sub-Compact Utility tractor | Hinomoto built |
|---|---|---|---|---|---|
1981 - 1983 | |||||
9500 Series | |||||
Sub-Compact Utility tractor | |||||
Hinomoto built | |||||
1981 - 1983 | |
|---|---|
9500 Series | |
Sub-Compact Utility tractor | |
Hinomoto built |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 9 forward and 3 reverse |
Oil capacity | 18 qts
17.0 L |
Three speeds (1-3) in three ranges (Creeper, Low, High). Gears are synchronized using the foot clutch. Tractor must be stopped, and clutch used, to shift ranges. | |

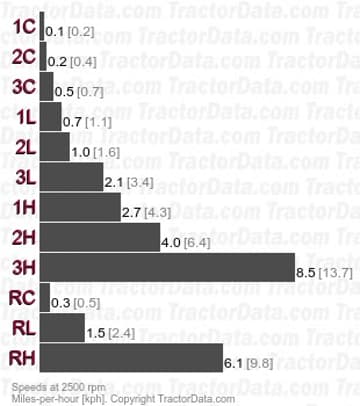

Speeds | |
|---|---|
With 8-18 R1 rear tires. | |
 |

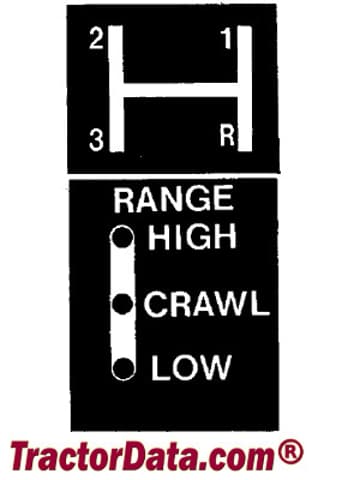

Shift Pattern | |
|---|---|
 |
