Simplicity Sovereign 3415H 990759
The Simplicity Sovereign 3415H 990759 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 757 lbs 343 kg.
Engine Power
Gasoline (gross): 15 hp / 11.2 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
757 lbs
343 kg
Overview
 | 1972
Sovereign SeriesGarden tractor
Sovereign Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
3415S | shuttle |
3415H | hydrostatic |
Simplicity 3415H Engine | |
|---|---|
15HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity 3415H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanial idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 757 lbs
343 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
15 hp. and 10 hp. tractors published in 1972, by Simplicity |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 325421 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.5625x3.25 inches
90 x 83 mm |
Power (gross) | 15 hp
11.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity 3415H Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 36 inches
91 cm |
Height | 39.25 inches
99 cm |
Weight | 757 lbs
343 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

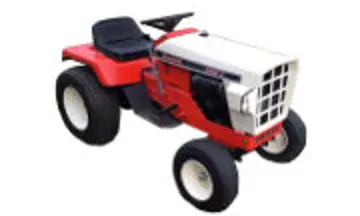

Simplicity Sovereign 3415H 990759 tractor photo
Simplicity Lawn Tractors Simplicity Sovereign 3415H 990759 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Sovereign 3415H 990759.
Converted Equivalents:
Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS
