Simplicity Sovereign 3415S 990758
The Simplicity Sovereign 3415S 990758 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW. Transmission: 4 forward and reverse.
Engine Power
Gasoline (gross): 15 hp / 11.2 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
4 forward and reverse
Overview
 | 1972
Sovereign SeriesGarden tractor
Sovereign Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Variants | |
|---|---|
3415S | shuttle |
3415H | hydrostatic |
Simplicity 3415S Engine | |
|---|---|
15HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity 3415S Transmission | |
|---|---|
4-speed shuttle | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanial idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
15 hp. and 10 hp. tractors published in 1972, by Simplicity |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 325421 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.5625x3.25 inches
90 x 83 mm |
Power (gross) | 15 hp
11.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and reverse shuttle
Type | shuttle |
Gears | 4 forward and reverse |
 | |
Dimensions
Simplicity 3415S Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 36 inches
91 cm |
Height | 39.25 inches
99 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

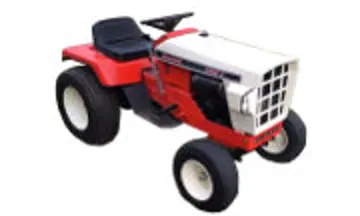

Simplicity Sovereign 3415S 990758
Simplicity Sovereign 3415S 990758
Simplicity Sovereign 3415S 990758
Simplicity Sovereign 3415S with mower deck.
Simplicity Lawn Tractors Simplicity Sovereign 3415S 990758 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Sovereign 3415S 990758.
Converted Equivalents:
Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS
