Simplicity Axion 24/50

The Simplicity Axion 24/50 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Engine Detail — 724 cc / 44.18 ci (listed): 24 hp / 17.9 kW. Transmission: Hydro-Gear EZT. Operating weight: 540 lbs 244 kg.

Overview

	2007 - 2009 Axion SeriesZero-turn mower Axion Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $3,100 in 2007

Simplicity Axion 24/50 Engine
24HP Briggs & Stratton 724cc 2-cyl
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity Axion 24/50 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Weight	540 lbs 244 kg
Front tire	11x4-4
Rear tire	18x8.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

References
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 724 cc / 44.18 ci

Manufacturer	Briggs & Stratton
Configuration	2-cylinder
Displacement	724 cc 44.18 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power	24 hp 17.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear EZT

Transmission	Hydro-Gear EZT
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Axion 24/50 Tires
Lawn/turf front	11x4-4
Lawn/turf rear	18x8.50

Dimensions
Length	61 inches 154 cm
Width	52 inches 132 cm
Height	45 inches 114 cm
Weight	540 lbs 244 kg

Attachments

50" Mower deck
Type	mid-mount Simplicity
	3-blade with electric lift
Cutting width	50 inches 127 cm
Overall width	61 inches 154 cm
Cut height	1 to 3.75 inch 2 to 9 cm

Photos

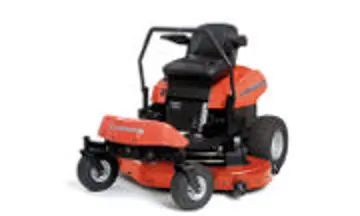

Simplicity Axion 24/50 tractor photo
