Simplicity Axion 20/42

The Simplicity Axion 20/42 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 20 hp / 14.9 kW. Transmission: Hydro-Gear EZT. Operating weight: 500 lbs 226 kg.

Overview

	2007 - 2009 Axion SeriesZero-turn mower Axion Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $2,700 in 2007

Simplicity Axion 20/42 Engine
20HP Briggs & Stratton 1-cyl
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity Axion 20/42 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Weight	500 lbs 226 kg
Front tire	11x4-4
Rear tire	18x8.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

References
Product Guide 2008 published by Simplicity

Engine

Manufacturer	Briggs & Stratton 33M6
Configuration	1-cylinder
Power	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear EZT

Transmission	Hydro-Gear EZT
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Axion 20/42 Tires
Lawn/turf front	11x4-4
Lawn/turf rear	18x8.50

Dimensions
Length	61 inches 154 cm
Width	44 inches 111 cm
Height	45 inches 114 cm
Weight	500 lbs 226 kg

Attachments

42" Mower deck
Type	mid-mount Simplicity
	2-blade with electric lift
Cutting width	42 inches 106 cm
Overall width	52 inches 132 cm
Cut height	1 to 3.75 inch 2 to 9 cm

Photos

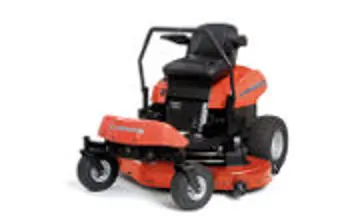

Simplicity Axion 20/42 tractor photo
