Simplicity Axion 26/50

The Simplicity Axion 26/50 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 26 hp / 19.4 kW. Transmission: Hydro-Gear EZT. Operating weight: 540 lbs 244 kg.

Overview

	2010 Axion SeriesZero-turn mower Axion Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $3,200 in 2010

Simplicity Axion 26/50 Engine
26HP Briggs & Stratton 2-cyl
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity Axion 26/50 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	540 lbs 244 kg
Front tire	11x4-4
Rear tire	18x8.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

Engine

Manufacturer	Briggs & Stratton
Configuration	2-cylinder
Power	26 hp 19.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear EZT

Transmission	Hydro-Gear EZT
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Axion 26/50 Tires
Lawn/turf front	11x4-4
Lawn/turf rear	18x8.50

Dimensions
Wheelbase	45 inches 114 cm
Length	61 inches 154 cm
Height	45 inches 114 cm
Weight	540 lbs 244 kg

Attachments

50" Mower deck
Type	mid-mount Simplicity
	3-blade with electric lift
Cutting width	50 inches 127 cm
Overall width	62 inches 157 cm
Cut height	1.5 to 3.75 inch 3 to 9 cm
Cut positions	infinite

Photos

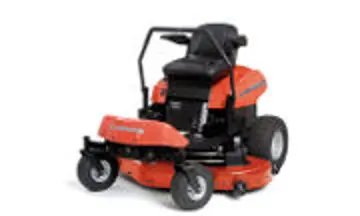

Simplicity Axion 26/50 tractor photo
