Simplicity Broadmoor 15G
The Simplicity Broadmoor 15G is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW. Transmission: Peerless. Operating weight: 130 lbs 58 kg.
Engine Power
Gasoline (gross): 15 hp / 11.2 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Peerless
Operating Weight
130 lbs
58 kg
Overview
 | 1994 - 1995
Broadmoor SeriesLawn tractor
Broadmoor Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $3,200 in 1994 | |
Variants | |
|---|---|
1615G | similar AGCO model |
Simplicity Broadmoor 15G Engine | |
|---|---|
15HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Broadmoor 15G Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 540 lbs
244 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Broadmoor Series (1709979) published in 1994 | |
Tractors & Riding Mowers published in 1994, by Simplicity | |
Tractors & Riding Mowers published in 1995, by Simplicity | |
1994 Price List published in 1993, by Simplicity |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 28Q777 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 15 hp
11.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Simplicity Broadmoor 15G Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.00-8 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 40 inches
101 cm |
Weight | 540 lbs*Weight with mower deck.
244 kg |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount Simplicity 1691705 |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Weight | 130 lbs
58 kg |
Overall width | 56 inches
142 cm |
Cut height | 1 to 3.6 inch
2 to 9 cm |
Photos

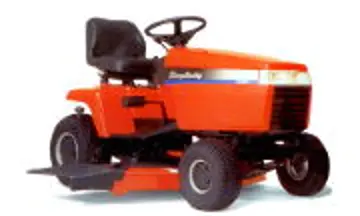

Simplicity Broadmoor 15G tractor photo
Simplicity Lawn Tractors Simplicity Broadmoor 15G Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Broadmoor 15G.
Converted Equivalents:
Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS
