Simplicity Broadmoor 15H

The Simplicity Broadmoor 15H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW. Transmission: Hydro-Gear. Operating weight: 540 lbs 244 kg.

Overview

	1995 - 1997 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $3,775 in 1996

Simplicity Broadmoor 15H Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 15H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	540 lbs 244 kg
Front tire	15x6.00-6
Rear tire	20x8.00-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Broadmoor Series (1709979) published in 1994
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer	Kohler CV15S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	426 cc 26 ci
Bore/Stroke	3.54x2.64 inches 90 x 67 mm
Power (gross)	15 hp 11.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 15H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.00-8

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Weight	540 lbs 244 kg

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

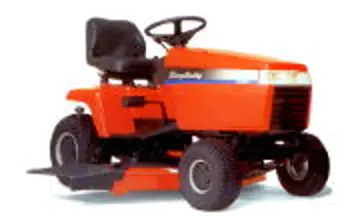

Simplicity Broadmoor 15H tractor photo
