Simplicity Broadmoor 23/50

The Simplicity Broadmoor 23/50 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K57.

Overview

	2014 - Broadmoor SeriesLawn tractor
2014 -
Broadmoor Series
Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price	$4,099 (2015 )
	$4,099 (2018 )

Simplicity Broadmoor 23/50 Engine
23HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	3.6 gal 13.6 L
Engine details ...

Simplicity Broadmoor 23/50 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station. Soft-side weather cab optional.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	15x6
Rear tire	22x9.5
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

Engine

Engine Detail — 724 cc / 44.18 ci Gasoline

Manufacturer	Briggs & Stratton Professional
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.18 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K57

Transmission	Tuff Torq K57
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 23/50 Tires
Lawn/turf front	15x6
Lawn/turf rear	22x9.5

Dimensions
Length	75 inches 190 cm
Width	56 inches 142 cm
Height	43 inches 109 cm
Front axle	Cast-iron

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade

50" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	50 inches 127 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	infinite

Photos

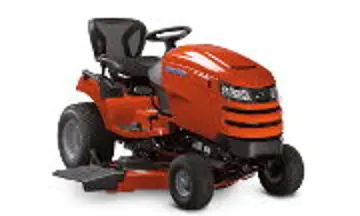

Simplicity Broadmoor 23/50 tractor photo
