Simplicity 7119

The Simplicity 7119 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 770 cc 47 ci engine. The listed engine power is Gasoline (gross): 19 hp / 14.2 kW. Transmission: infinite forward and reverse.

Overview

	1981 - 1986 7100 SeriesGarden tractor 7100 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA

Simplicity 7119 Engine
19HP Kohler 770cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Simplicity 7119 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	50.7 inches 128 cm
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual 7100 Series (1679625) published in 1986
Riding Mowers and Garden Tractors published in 1982, by Simplicity

Engine

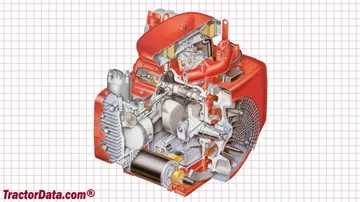

Engine Detail — 770 cc / 47 ci Gasoline

Manufacturer	Kohler KT-19
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft horizontally-opposed
Displacement	770 cc 47 ci
Bore/Stroke	3.125x3.0625 inches 79 x 78 mm
Power (gross)	19 hp 14.2 kW
Starter	electric
Starter volts	12

Simplicity 7119 Engine

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity 7119 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	50.7 inches 128 cm
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height (steering wheel)	39.7 inches 100 cm
Height (hood)	35.7 inches 90 cm
Clearance (front axle)	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Simplicity 7119

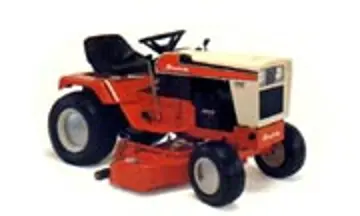

Simplicity 7119

Simplicity 7119 operator station and controls.
