Simplicity Champion 26/52

The Simplicity Champion 26/52 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 26 hp / 19.4 kW. Transmission: Hydro-Gear. Operating weight: 723 lbs 327 kg.

Overview

	2010 - 2012 Champion SeriesZero-turn mower Champion Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $4,700 in 2012

Simplicity Champion 26/52 Engine
26HP Briggs & Stratton 2-cyl
Fuel tank	5 gal 18.9 L
Engine details ...

Simplicity Champion 26/52 Transmission
hydrostatic
Transmission details ...

Mechanical
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49 inches 124 cm
Weight	723 lbs 327 kg
Front tire	11x4-5
Rear tire	20x8-10
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

Engine

Manufacturer	Briggs & Stratton
Configuration	2-cylinder
Power	26 hp 19.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear

Transmission	Hydro-Gear
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Champion 26/52 Tires
Lawn/turf front	11x4-5
Lawn/turf rear	20x8-10

Dimensions
Wheelbase	49 inches 124 cm
Length	78 inches 198 cm
Height	62 inches 157 cm
Weight	723 lbs 327 kg

Attachments

52" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	52 inches 132 cm
Overall width	62 inches 157 cm
Cut height	1.5 to 4.5 inch 3 to 11 cm
Cut positions	7

Photos

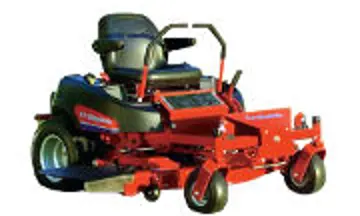

Simplicity Champion 26/52 tractor photo
