Simplicity Citation 23/52

The Simplicity Citation 23/52 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 627 cc 38.26 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear 10A/12P. Operating weight: 1000 lbs 453 kg.

Overview

	2006 - 2009 Citation SeriesZero-turn mower Citation Series Zero-turn mower

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Zero-turn mower
Original price was $7,100 in 2006

Simplicity Citation 23/52 Engine
23HP Vanguard 627cc 2-cyl gasoline
Fuel tank	6.5 gal 24.6 L
Engine details ...

Simplicity Citation 23/52 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Two-post folding ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	1000 lbs 453 kg
Front tire	13x5
Rear tire	22x11
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	340
Battery volts	12

References
Zero-Turn Riding Mowers published in 2005, by Simplicity
Product Guide 2008 published by Simplicity

Engine

Engine Detail — 627 cc / 38.26 ci Gasoline

Manufacturer	Vanguard
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	627 cc 38.26 ci
Bore/Stroke	2.972x2.756 inches 75 x 70 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear 10A/12P

Transmission	Hydro-Gear 10A/12P
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Citation 23/52 Tires
Lawn/turf front	13x5
Lawn/turf rear	22x11

Dimensions
Wheelbase	48 inches 121 cm
Length	79.5 inches 201 cm
Height (ROPS)	70 inches 177 cm
Weight	1000 lbs 453 kg

Attachments

52" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	52 inches 132 cm
Overall width	64 inches 162 cm
Cut height	1.75 to 5 inch 4 to 12 cm
Cut positions	14

Photos

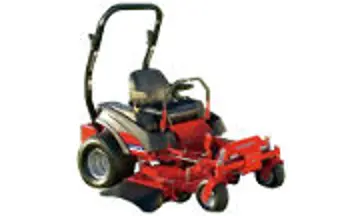

Simplicity Citation 23/52 tractor photo
