Simplicity Citation XT 23/52
The Simplicity Citation XT 23/52 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Engine 1 (listed): 23 hp / 17.2 kW. Transmission: Hydro-Gear ZT-3400.
Engine Power
Engine 1 (listed): 23 hp / 17.2 kW
Fuel & Capacities
6.5 gal
24.6 L
Transmission
Hydro-Gear ZT-3400
Overview
 | 2013 - 2015
Citation SeriesZero-turn mower
Citation Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Zero-turn mower | |
Simplicity Citation XT 23/52 Engine | |
|---|---|
23HP Kawasaki 2-cyl | |
Fuel tank | 6.5 gal
24.6 L |
Engine details ...  | |
Simplicity Citation XT 23/52 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 13x5 |
Rear tire | 22x11 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 340 |
Battery volts | 12 |
Engine
Manufacturer | Kawasaki |
|---|---|
Configuration | 2-cylinder |
Power | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear ZT-3400
Transmission | Hydro-Gear ZT-3400 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Citation XT 23/52 Tires | |
|---|---|
Lawn/turf front | 13x5 |
Lawn/turf rear | 22x11 |
Dimensions | |
|---|---|
Length | 79 inches
200 cm |
Height (ROPS) | 70 inches
177 cm |
Attachments
52" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 52 inches
132 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Cut positions | 14 |
Photos

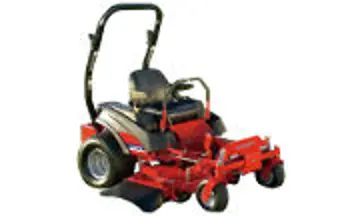

Simplicity Citation XT 23/52 tractor photo
Simplicity Lawn Tractors Simplicity Citation XT 23/52 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Citation XT 23/52.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
